(N)TSCGEWOEU Medium Voltage Fixed Installation Cable With Fiber Optics

Applications

These cables are used for For laying alongside the conveyor belts (also for shiftable units) and on material handling equipment (even with continuous movement such as in cable booms or as connection between upper and lower car) and for connection of submersible pump units.

Standards

Based on VDE 0250 Part 813

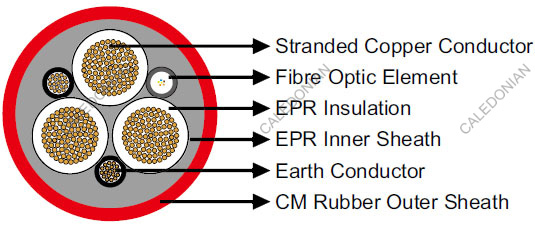

Construction

(N)TSCGEWOEU Medium Voltage mining Cable
Conductors Flexible stranded tinned copper conductor , class 5 according to DIN VDE 0295.
Inner Conductor Layer Semiconductive layer.
Insulation EPR.
Outer Conductor Layer Semiconductive layer.
Earth Conductor Split into two in the outer interstices.
Fiber Optics FO 50/125 or 62.5/125 or E9/125μm within protection sheath.
Inner Sheath EPR.
Outer Sheath CM.

Dimensions and Weight

3.6/6 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
3×25+2×25/2+1×(6LWL) 40.1 43.1 2650
3×25+2×50/2+1×(6LWL) 42.4 45.4 3060
3×35+2×25/2+1×(6LWL) 42.3 45.3 3060
3×35+2×50/2+1×(6LWL) 44.0 47.0 3410
3×50+2×25/2+1×(6LWL) 43.8 46.8 3490
3×50+2×50/2+1×(6LWL) 46.1 49.1 3640
3×70+2×35/2+1×(6LWL) 47.0 50.0 4350
3×70+2×50/2+1×(6LWL) 52.0 56.0 5280
3×95+2×50/2+1×(6LWL) 52.2 56.2 5550
3×120+2×70/2+1×(6LWL) 49.6 50.9 7040
3×150+2×70/2+1×(6LWL) 48.4 52.3 8000
3×185+2×95/2+1×(6LWL) 51.3 55.3 9310
3×240+2×120/2+1×(6LWL) 58.0 62.0 11940
3×300+2×150/2+1×(6LWL) 63.2 67.2 14230

6/10 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
3×25+2×25/2+1×(6LWL) 41.4 44.4 2770
3×25+2×50/2+1×(6LWL) 43.1 46.1 3120
3×35+2×25/2+1×(6LWL) 43.6 46.6 3190
3×35+2×50/2+1×(6LWL) 44.7 47.7 3470
3×50+2×25/2+1×(6LWL) 45.1 48.1 3620
3×50+2×50/2+1×(6LWL) 46.8 49.8 4010
3×70+2×35/2+1×(6LWL) 48.3 51.3 4500
3×70+2×50/2+1×(6LWL) 52.7 56.7 5360
3×95+2×50/2+1×(6LWL) 53.5 57.5 5710
3×120+2×70/2+1×(6LWL) 57.2 61.2 6830
3×150+2×70/2+1×(6LWL) 62.3 66.3 8180
3×185+2×95/2+1×(6LWL) 65.3 69.3 9500
3×240+2×120/2+1×(6LWL) 73.4 77.4 12160
3×300+2×150/2+1×(6LWL) 78.6 82.6 14460

8.7/15 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
3×25+2×25/2+1×(6LWL) 44.2 47.2 3050
3×25+2×50/2+1×(6LWL) 45.4 48.4 3350
3×35+2×25/2+1×(6LWL) 45.3 48.3 3320
3×35+2×50/2+1×(6LWL) 47.0 50.0 3710
3×50+2×25/2+1×(6LWL) 49.4 53.4 4160
3×50+2×50/2+1×(6LWL) 51.2 55.2 4590
3×70+2×35/2+1×(6LWL) 52.7 56.7 5080
3×70+2×50/2+1×(6LWL) 55.0 59.0 5640
3×95+2×50/2+1×(6LWL) 57.0 61.0 6160
3×120+2×70/2+1×(6LWL) 62.1 66.1 7520
3×150+2×70/2+1×(6LWL) 65.7 69.7 8670
3×185+2×95/2+1×(6LWL) 68.7 72.7 10010
3×240+2×120/2+1×(6LWL) 76.8 80.8 12730
3×300+2×150/2+1×(6LWL) 82.0 86.0 15080

12/20 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
3×25+2×25/2+1×(6LWL) 45.5 48.5 3140
3×25+2×50/2+1×(6LWL) 47.2 50.2 3530
3×35+2×25/2+1×(6LWL) 48.3 51.3 3640
3×35+2×50/2+1×(6LWL) 51.0 55.0 4240
3×50+2×25/2+1×(6LWL) 52.5 56.5 4530
3×50+2×50/2+1×(6LWL) 52.5 56.5 4690
3×70+2×35/2+1×(6LWL) 55.7 59.7 5460
3×70+2×50/2+1×(6LWL) 58.0 62.0 6040
3×95+2×50/2+1×(6LWL) 61.4 65.4 6770
3×120+2×70/2+1×(6LWL) 65.1 69.1 7950
3×150+2×70/2+1×(6LWL) 68.7 72.7 9130
3×185+2×95/2+1×(6LWL) 73.2 77.2 10770
3×240+2×120/2+1×(6LWL) 79.8 83.8 13260
3×300+2×150/2+1×(6LWL) 86.3 91.3 16040

14/25 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
3×25+2×25/2+1×(6LWL) 50.3 54.3 3740
3×25+2×50/2+1×(6LWL) 50.3 54.3 3900
3×35+2×25/2+1×(6LWL) 53.1 57.1 4270
3×35+2×50/2+1×(6LWL) 53.1 57.1 4440
3×50+2×25/2+1×(6LWL) 56.3 60.3 5000
3×50+2×50/2+1×(6LWL) 56.3 60.3 5160
3×70+2×35/2+1×(6LWL) 61.0 65.0 6190
3×70+2×50/2+1×(6LWL) 61.0 65.0 6390
3×95+2×50/2+1×(6LWL) 65.3 69.3 7340
3×120+2×70/2+1×(6LWL) 69.0 73.0 8550
3×150+2×70/2+1×(6LWL) 74.0 78.0 10020
3×185+2×95/2+1×(6LWL) 77.0 81.0 11410
3×240+2×120/2+1×(6LWL) 85.0 90.0 14380
3×300+2×150/2+1×(6LWL) 90.2 95.2 16820

18/30 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
3×25+2×25/2+1×(6LWL) 53.7 57.7 4140
3×25+2×50/2+1×(6LWL) 53.7 57.7 4310
3×35+2×25/2+1×(6LWL) 56.6 60.6 4720
3×35+2×50/2+1×(6LWL) 56.6 60.6 4880
3×50+2×25/2+1×(6LWL) 61.2 65.2 5680
3×50+2×50/2+1×(6LWL) 61.2 65.2 5840
3×70+2×35/2+1×(6LWL) 64.4 68.4 6670
3×70+2×50/2+1×(6LWL) 64.4 68.4 6870
3×95+2×50/2+1×(6LWL) 68.7 72.7 7860
3×120+2×70/2+1×(6LWL) 73.8 77.8 9350
3×150+2×70/2+1×(6LWL) 77.5 81.5 10630
3×185+2×95/2+1×(6LWL) 80.5 84.5 12040
3×240+2×120/2+1×(6LWL) 88.5 93.5 15070
3×300+2×150/2+1×(6LWL) 94.7 99.7 17780
