JIS C 3606 Standard Medium Voltage Cables Single Core
APPLICATIONS
This product is used for an underground distribution cable for the lead-out parts of substations
of general power distribution lines including high-capacity power distribution, cable tunnels,
pipelines, directly embedded types, raising parts of telephone poles, etc.
STANDARD

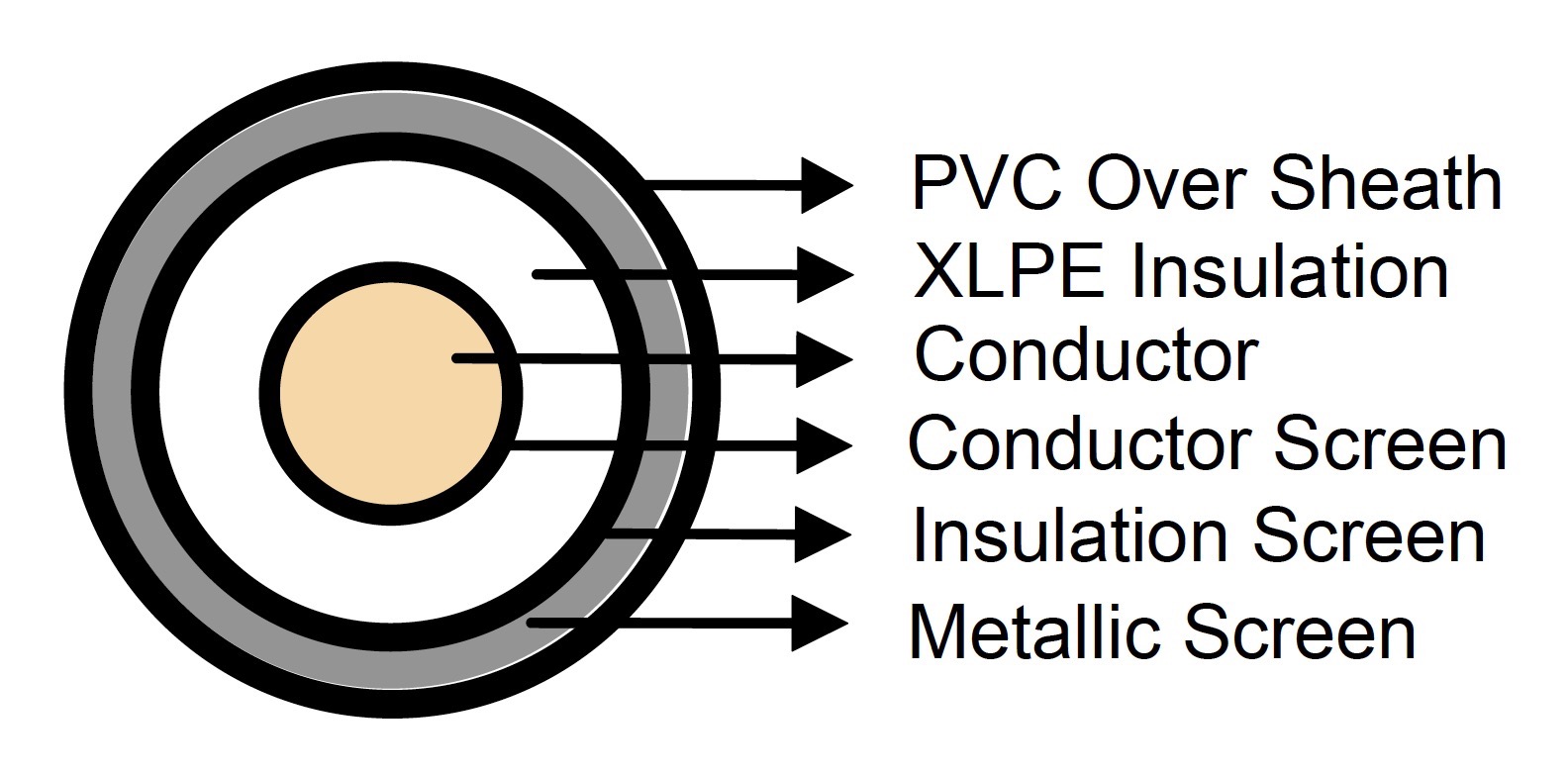

CONSTRUCTION
 |
|
| Conductor |
Plain annealed copper with JCS C 3102. |
| Conductor Screen |
The conductor screen consists of an extruded layer of non metallic,
semi-conducting compound firmly bonded to the insulation to exclude all air voids. |
| Insulation: |
XLPE. |
| Insulation Screen: |
The insulation screen consists of an extruded layer of non metallic, semiconducting
compound extruded over the insulation. The extruded semi-conducting layer
shall consist of bonded or cold strippable semi-conducting compound capable of removal
for jointing or terminating. As an option, a semi-conducting tape may be applied over the
extruded semi-conducting layer as a bedding for the metallic layer. The minimum thickness is
0.5 mm. The screen is tightly fitted to the insulation to exclude all air voids and can be easily
hand stripped on site. |
| Metallic Sreen: |
By sufficiently winding of a soft copper tape on an external semiconductive
layer, each core shall be shielded,the tape is wound with overlapping about one-sixth of its
width or the equivalent of that. |
| Over Sheath: |
Black, PVC or PE. |
PHYSICAL PROPERTIES
| Operating Temperature |
up to 120°C |
| Cold Resistant: |
-15 ± 0.5 °C |
Single Core 6600V (Test Voltage=17KV)
Dimensional Data
| Nom.Cross- Section Area |
Nom. Insulation Thickness |
Nom. Sheath Thickness |
Approx. Overall Diameter |
Approx.
Weight |
| CV |
CE |
CE/F |
| mm² |
mm |
mm |
mm |
kg/km |
| 8 |
4.0 |
1.8 |
16.5 |
365 |
325 |
355 |
| 14 |
4.0 |
1.8 |
17.5 |
460 |
425 |
450 |
| 22 |
4.0 |
1.9 |
18.5 |
525 |
475 |
510 |
| 38 |
4.0 |
2.0 |
21 |
730 |
685 |
715 |
| 60 |
4.0 |
2.0 |
23 |
1070 |
1010 |
1050 |
| 100 |
4.0 |
2.1 |
26 |
1470 |
1390 |
1450 |
| 150 |
4.0 |
2.3 |
29 |
1980 |
1890 |
1950 |
| 200 |
4.5 |
2.4 |
32 |
2550 |
2450 |
2520 |
| 250 |
4.5 |
2.5 |
35 |
3070 |
2950 |
3030 |
| 325 |
4.5 |
2.6 |
38 |
3750 |
3630 |
3710 |
| 400 |
4.5 |
2.7 |
40 |
4640 |
4410 |
4570 |
| 500 |
4.5 |
2.8 |
43 |
5550 |
5370 |
5490 |
| 600 |
5.0 |
2.9 |
47 |
6870 |
6710 |
6820 |
| 800 |
5.0 |
3.1 |
52 |
9000 |
8800 |
8940 |
| 1000 |
5.0 |
3.3 |
56 |
11000 |
10760 |
10930 |
Electrical Data
| Nom.Cross- Section Area |
Max. Conductor Resistance (20 °C) |
Min. Insulation Resistance |
Electrostatic Capacitance |
| mm² |
Ω/km |
MΩ-km |
µF/ Km |
| 8 |
2.29 |
2500 |
0.21 |
| 14 |
1.31 |
2500 |
0.24 |
| 22 |
0.832 |
2500 |
0.27 |
| 38 |
0.481 |
2500 |
0.32 |
| 60 |
0.305 |
2500 |
0.37 |
| 100 |
0.183 |
1500 |
0.45 |
| 150 |
0.122 |
1500 |
0.52 |
| 200 |
0.0915 |
1500 |
0.51 |
| 250 |
0.0739 |
1500 |
0.55 |
| 325 |
0.0568 |
1500 |
0.61 |
| 400 |
0.0462 |
1000 |
0.68 |
| 500 |
0.0369 |
900 |
0.74 |
| 600 |
0.0308 |
900 |
0.71 |
| 800 |
0.0231 |
800 |
0.81 |
| 1000 |
0.0185 |
800 |
0.85 |
Note:C:XLPE V:Vinyl E:PE F:Flame retardant
