NEK606 Offshore Marine Cable
S110 (Formerly S16) BFOU-HCF(c) 250 V

Applications :

These cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency instrumentation, communication, control and alarm systems that need to be operational during a 1100℃ hydrocarbon fire.

Standards :

  • IEC 60092-376 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    IEC 60331-21
  S110 (Formerly S16) BFOU-HCF(c) 250 V NEK606 Offshore Marine cables S110 (Formerly S16) BFOU-HCF(c) 250 V NEK606 Offshore Marine cables

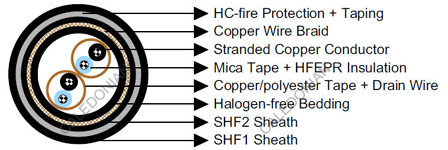

Construction :

Conductors : Circular tinned stranded copper wire to IEC 60228 class 2 or class 5.
Insulation : Mica tape + Halogen free EPR compound or Mica tape + XLPE.
Twinning : Colour coded cores twisted together.
Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Bedding : Halogen free compound.
Armour : Tinned copper wire braid.
Outer Sheath1 : Halogen free thermosetting compound, SHF2.
HC-fire protection : Extruded thermoplastic fire protection compound.
Taping : Lapped glass fibre tape.
Outer Sheath2 : Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for intrinsically safe).

Electrical Characteristics :

  • Nominal Cross Section Area mm² 1.5
    Nominal Conductor Diameter mm 1.6
    Maximum Resistant@20℃ Ω/km 12.9
    Mutual Capacitance nF/km 85
    Nominal Inductance@1KHz MH/km 0.667
    Operating Voltage V 250

Mechanical and Thermal Properties :

Bending Radius : 20×OD (during installation); 12×OD (fixed installed).
Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight :

Construction No. of elements×No. of cores in element×Cross section
(mm²)
Nominal Insulation Thickness
mm
Nominal Diameter Over Bedding
mm
Nominal Diameter Over Sheath1
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
2×2×1.5 0.7 13.0 16.4 44.5 2400
4×2×1.5 0.7 15.0 19.9 46.5 2650
8×2×1.5 0.7 20.5 25.3 53.0 3570
12×2×1.5 0.7 23.5 29.6 57.0 4160
