NEK606 Offshore Marine Cable
S111 RX/TX 250V
Applications
These S111 RX/TX 250V NEK606 Offshore Marine cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency control, power and lighting systems that need to be operational during a 1100℃ hydrocarbon fire.
Standards
-
| IEC 60092-354 |
IEC 60092-360 |
| IEC 60331-21 |
IEC 60332-1 |
| IEC 60332-3-22 |
IEC 60754-1,2 |
| IEC 61034-1,2 |
NEK 606:2016 |

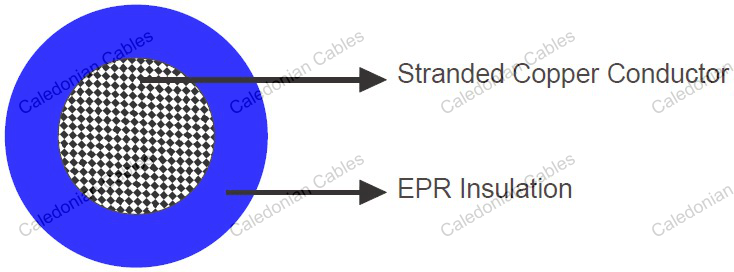

Construction
-
Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Insulation : Halogen-free EPR or XLPE. Blue,brown, black or grey. Blue, brown, black or grey.
Electrical Characteristics
| Nominal Cross Section Area |
mm² |
0.75 |
1.0 |
1.5 |
2.5 |
| Nominal Conductor Diameter |
mm |
1.1 |
1.3 |
1.6 |
2.0 |
| Maximum Resistant@20℃ |
Ω/km |
26.3 |
19.3 |
12.9 |
8.02 |
| Mutual Capacitance |
nF/km |
85 |
95 |
100 |
110 |
| Nominal Inductance@1KHz |
MH/km |
0.731 |
0.691 |
0.673 |
0.629 |
| Maximum L/R@1KHz |
μH/Ω |
20 |
25 |
35 |
55 |
| Operating Voltage |
V |
250 |
250 |
250 |
250 |
Mechanical and Thermal Properties
Bending Radius : 8×OD (during installation); 6×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
Dimensions and Weight
| Construction No. of cores × Cross section |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Nominal Weight |
| mm² |
mm |
mm |
kg/km |
| 1×0.75 |
0.6 |
2.31 |
107 |
| 1×1.0 |
0.6 |
2.49 |
120 |
| 1×1.5 |
0.7 |
2.99 |
171 |
| 1×2.5 |
0.7 |
3.41 |
209 |
