NEK606 Offshore Marine Cable
P102 (Formerly P2 or P2/P9) RFOU/TFOU 3.6/6KV

Applications

These P102 (Formerly P2 or P2/P9) RFOU/TFOU 3.6/6KV NEK606 Offshore Marine cables are flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

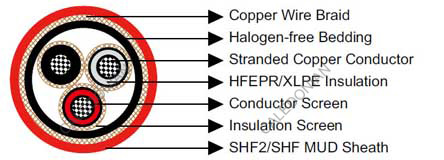

  P2 or P2/P9 RFOU/TFOU 3.6/6KV NEK606 Offshore Marine cables P2 or P2/P9 RFOU/TFOU 3.6/6KV NEK606 Offshore Marine cables

Construction

Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Conductor Screen : Semi conducting material.
Insulation : Halogen-free EPR or XLPE.
Insulation Screen : Semi conducting material and tinned copper wire braid.
Bedding : Halogen free compound.
Armour : Tinned copper wire braid in accordance with IEC 60092-350.
Outer Sheath : Halogen free thermosetting compound, SHF2 (for formerly TYPE P2), or halogen free mud resistant thermosetting compound, SHF MUD (for formerly TYPE P2/P9),coloured red.

Electrical Characteristics

  • Nominal Cross Section Area mm² 16 25 35 50 70 95 120
    Nominal Conductor Diameter mm 5.1 6.5 7.4 8.7 10.3 12.2 13.8
    Maximum DC Resistant@20℃ Ω/km 1.16 0.734 0.529 0.391 0.27 0.195 0.154
    Continuous Current Rating@45℃1 Core A 96 127 157 196 242 293 339
    Continuous Current Rating@45℃3 Core A 67 89 110 137 169 205 237
    Short Circuit Current 1s A 2290 3580 5010 7150 10020 13590 17170
    Operating Voltage KV 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6

    Nominal Cross Section Area mm² 150 185 240 300 400 500 630
    Nominal Conductor Diameter mm 15.1 17.0 19.6 21.9 24.6 27.6 32.5
    Maximum DC Resistant@20℃ Ω/km 0.126 0.1 0.0762 0.0607 0.0475 0.0369 0.0286
    Continuous Current Rating@45℃1 Core A 389 444 522 601 690 780 890
    Continuous Current Rating@45℃3 Core A 272 311 365 421 483 546 623
    Short Circuit Current 1s A 21460 26470 34340 42930 57230 71540 90140
    Operating Voltage KV 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6

Ambient Temperature Correction Factors :

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

Bending Radius :15×OD (during installation); 9×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight

Construction No. of cores×Cross section
(mm²)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
Inner Outer
1×16 2.5 1.0 1.6 22.8 780
1×25 2.5 1.0 1.6 24.0 1020
1×35 2.5 1.0 1.7 25.1 1155
1×50 2.5 1.0 1.7 26.3 1320
1×70 2.5 1.0 1.8 28.2 1595
1×95 2.5 1.0 1.9 30.0 1905
1×120 2.5 1.0 1.9 31.8 2235
1×150 2.5 1.2 2.0 33.5 2550
1×185 2.5 1.2 2.1 35.4 3015
1×240 2.6 1.2 2.2 38.8 3725
1×300 2.8 1.2 2.3 42.3 4625
1×400 3.0 1.4 2.5 46.6 5420
1×500 3.2 1.4 2.6 50.8 6610
1×630 3.2 1.4 2.8 55.1 8170
3×16 2.5 1.2 2.3 44.9 2930
3×25 2.5 1.2 2.4 45.4 3390
3×35 2.5 1.4 2.5 47.6 3820
3×50 2.5 1.4 2.6 50.9 4495
3×70 2.5 1.4 2.8 54.8 5585
3×95 2.5 1.6 2.9 58.9 6765
3×120 2.5 1.6 3.1 63.5 8165
3×150 2.5 1.6 3.2 67.4 9495
3×185 2.5 1.6 3.4 75.8 10660
3×240 2.6 1.8 3.6 82.3 11660
3×300 2.8 1.8 3.9 89.3 12940
