NEK606 Offshore Marine Cable
P111 RU/TU (Formerly P18 RU) 0.6/1kV

Applications

  • These P111 RU/TU (Formerly P18 RU) 0.6/1kV NEK606 Offshore Marine cables are flame retardant, low smoke, halogen freeand mud resistant, used for control, power and lighting systems.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

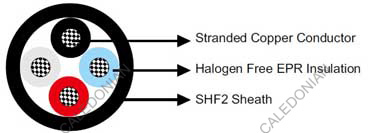

  NEK606 Offshore Marine Cable P18 RU 0.6/1kV NEK606 Offshore Marine Cable P18 RU 0.6/1kV

Construction

  • Conductors : Tinned annealed stranded copper to IEC 60228 class 2 or class 5.
  • Insulation : Halogen-free EPR or XLPE.
  • Outer Sheath :Halogen free thermosetting compound, SHF2, coloured black.

Electrical Characteristics

  • Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35
    Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4
    Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529
    Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157
    Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133
    Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110
    Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
    Nominal Cross Section Area mm² 50 70 95 120 150 185 240 300
    Nominal Conductor Diameter mm 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9
    Maximum DC Resistant@20℃ Ω/km 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
    Continuous Current Rating@45℃1 Core A 196 242 293 339 389 444 522 601
    Continuous Current Rating@45℃2 Core A 167 206 249 288 331 444 444 511
    Continuous Current Rating@45℃3&4 Core A 137 169 205 237 272 311 365 421
    Short Circuit Current 1s A 7150 10020 13590 17170 21460 26470 34340 42930
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
    Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight

Construction No. of cores×Cross section(mm²) Nominal Insulation Thickness mm Nominal Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
1×1.5 1.0 1.0 6.0 60
1×2.5 1.0 1.0 6.5 80
1×4 1.0 1.0 7.1 110
1×6 1.0 1.0 7.6 130
1×10 1.0 1.1 8.5 165
1×16 1.0 1.1 9.8 235
1×25 1.2 1.2 11.7 355
1×35 1.2 1.2 12.8 455
1×50 1.4 1.3 14.4 595
1×70 1.4 1.4 16.3 805
1×95 1.6 1.5 18.7 1090
1×120 1.6 1.5 20.3 1345
1×150 1.8 1.6 22.4 1635
1×185 2.0 1.7 24.9 2075
1×240 2.2 1.8 28.1 2660
1×300 2.4 1.9 30.8 3340
2×1.5 1.0 1.1 9.7 145
2×2.5 1.0 1.1 10.5 175
2×4 1.0 1.2 11.6 225
2×6 1.0 1.2 12.9 295
2×10 1.0 1.3 14.8 420
2×16 1.0 1.4 17.2 605
2×25 1.2 1.5 21.3 940
2×35 1.2 1.6 23.3 1185
2×50 1.4 1.8 26.9 1585
2×70 1.4 1.9 31.9 2280
2×95 1.6 2.1 36.9 3090
2×120 1.6 2.2 40.3 3780
2×150 1.8 2.4 44.7 4640
2×185 2.0 2.6 49.5 5750
2×240 2.2 2.8 56.1 7460
2×300 2.4 3.0 62.0 9265
3×1.5 1.0 1.1 10.3 165
3×2.5 1.0 1.2 11.1 205
3×4 1.0 1.2 12.5 280
3×6 1.0 1.3 13.6 360
3×10 1.0 1.3 16.0 530
3×16 1.0 1.4 18.5 770
3×25 1.2 1.6 22.9 1200
3×35 1.2 1.7 25.0 1525
3×50 1.4 1.8 28.7 2030
3×70 1.4 2.0 32.6 2765
3×95 1.6 2.2 37.6 3745
3×120 1.6 2.3 41.2 4640
3×150 1.8 2.5 45.7 5675
3×185 2.0 2.7 51.2 7200
3×240 2.2 3.0 57.5 9300
3×300 2.4 3.2 66.8 12080
4×1.5 1.0 1.2 11.2 200
4×2.5 1.0 1.2 12.4 255
4×4 1.0 1.3 13.7 340
4×6 1.0 1.3 15.2 455
4×10 1.0 1.4 17.5 665
4×16 1.0 1.5 20.4 970
4×25 1.2 1.7 25.5 1530
4×35 1.2 1.8 27.8 1955
4×50 1.4 2.0 31.9 2600
4×70 1.4 2.1 36.3 3540
4×95 1.6 2.4 42.0 4815
4×120 1.6 2.5 46.0 5965
4×150 1.8 2.7 53.5 7720
4×185 2.0 2.9 59.2 9570
4×240 2.2 3.2 67.3 12480
4×300 2.4 3.5 74.6 15870
5×1.5 1.0 1.2 13.1 245
6×1.5 1.0 1.3 14.4 275
7×1.5 1.0 1.3 14.4 285
8×1.5 1.0 1.4 16.9 380
9×1.5 1.0 1.4 18.1 395
10×1.5 1.0 1.4 18.4 435
12×1.5 1.0 1.4 19.0 485
14×1.5 1.0 1.5 20.2 565
16×1.5 1.0 1.5 21.3 615
19×1.5 1.0 1.6 22.6 715
20×1.5 1.0 1.6 23.8 780
23×1.5 1.0 1.7 25.9 905
24×1.5 1.0 1.7 26.6 920
27×1.5 1.0 1.7 27.2 985
30×1.5 1.0 1.8 28.4 1110
33×1.5 1.0 1.8 29.5 1190
37×1.5 1.0 1.9 30.8 1315
44×1.5 1.0 2.0 34.8 1560
5×2.5 1.0 1.3 14.3 305
6×2.5 1.0 1.3 15.6 360
7×2.5 1.0 1.3 15.6 390
8×2.5 1.0 1.4 18.4 495
9×2.5 1.0 1.5 19.9 505
10×2.5 1.0 1.5 20.2 570
12×2.5 1.0 1.5 20.9 625
14×2.5 1.0 1.5 21.9 735
16×2.5 1.0 1.6 23.3 810
19×2.5 1.0 1.6 24.6 935
20×2.5 1.0 1.7 26.1 1035
23×2.5 1.0 1.8 28.4 1205
24×2.5 1.0 1.8 29.2 1220
27×2.5 1.0 1.8 29.9 1295
30×2.5 1.0 1.9 31.1 1475
33×2.5 1.0 1.9 32.3 1585
37×2.5 1.0 2.0 33.8 1730
44×2.5 1.0 2.2 38.4 2100
