LMR Coax
Product type: LMR 400 Coaxial Cables
| bending radius | 50mm |
| operating temperature | -40℃ to +85℃ |

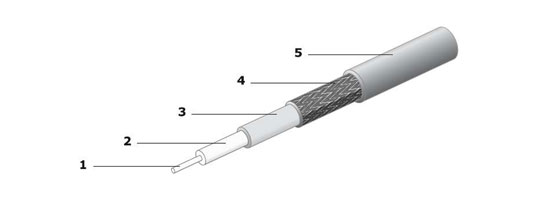

Construction :
| Item | Material | Diamter (mm) | |
| 1 | Inner Conductor(mm) | solid copper | 2.74 |
| 2 | Dielectric(mm) | solid polyhthylene | 7.24 |
| 3 | Outer Conductor(mm) | bonded alunimium foil | 7.39 |
| 4 | overall braid | tinned copper | 8.13 |
| 5 | Jacket(mm) | black polyhthylene | 10.29 |
Electrical:
| Impedance | 50ohm |
| Capacitance(PF/m) | 101.1PF/m |
| velocity of propagation | 66% |
| voltage withstanding | 500V DC |
| Maximum operating frequency | 6000 MHz |
| Attenuation(dB/100m)Max | |
| 150 | 5 |
| 220 | 6.1 |
| 450 | 8.9 |
| 900 | 12.8 |
| 1500 | 16.8 |
| 1800 | 18.6 |
| 2000 | 19.6 |
| 2500 | 22.2 |
| 3000 | 24.8 |
| 5800 | 35.5 |
