Fluoropolymer-insulated Heating Cable up to 260 °C with Protective Braid+Outer Sheath

Fluoropolymer-insulated Heating Cable up to 260 °C with Protective Braid+Outer Sheath

Application

Heat tracing on tanks
Pipe, valve and pump heating
Heat tracing on filters
Heat tracing on hoppers
Heat tracing on vessels

Standard

DIN VDE 0253

Voltage Rating

750V

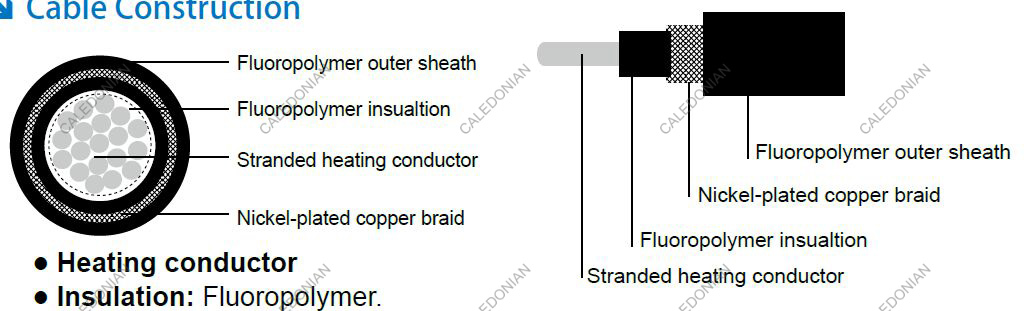

Construction

Heating conductor
Insulation: Fluoropolymer.
Protective: Nickel-plated copper braid.
Outer sheath: Fluoropolymer.

Mechanical and Thermal Properties

Maximum operating temperature: 260℃
Minimum installation temperature: -60℃
Minimum bending radius: 2.5xOD
Maximum output: 30 W/m
Nominal resistance of heating conductor: 8000 Ω/km

Cable Parameter

Nominal resistance Ω/km APPROX. outer diameter mm 7APPROX. weight g/m Temperature coefficient x 10¯³/K
1.95 (Cu 10mm²) 7.7 156.0 4.3
2.90 (Cu 6mm²) 6.4 110 4.3
4.40 (Cu 4mm²) 5.6 85 4.3
7.20 (Cu 2.5mm²) 4.5 53 4.3
10.0 4.2 51 4.3
11.7 (Cu 1.5mm²) 4.1 48 4.3
15.0 3.9 44 4.3
25.0 3.8 43 3.0
31.5 4.1 45 1.6
50.0 3.8 43 1.6
65.0 3.6 42 1.6
80.0 3.9 55 0.9
100.0 3.8 53 0.9
157.0 3.8 40 0.45
180.0 3.5 38 0.9
200.0 3.6 39 0.45
260.0 3.5 38 0.45
280.0 3.4 35 0.38
328.0 3.78 35.2 0.18
360.0 3.3 33 0.45
430.0 3.5 38 0.18
480.0 3.5 39 0.18
600.0 3.4 35 0.18
800.0 3.3 34 0.18
1000.0 3.4 35 0.04
1470.0 3.2 40 0.04
1750.0 3.2 38 0.04
1900.0 3.5 39 0.40
2900.0 3.3 32 0.40
4000.0 3.2 31 0.40
4700.0 3.2 31 0.15
6000.0 3.2 38 0.20
7000.0 3.2 36 0.15
8000.0 3.2 33 0.15
