Type ELSR-H up to 210°C
Application
Chemical & petrochemical industries
Oil & gas industry
Power plants
Ex-areas
Frost protection
Water & sanitation utilities
Temperature maintenance on vessels, pipes & valves
Standard
EN 62395-1
Voltage Rating
230V

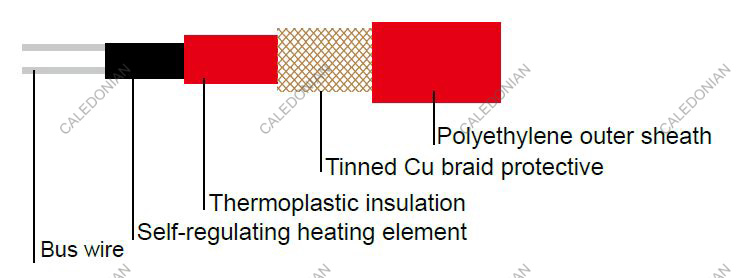

Construction
Bus wire: Nickel plated copper.
Self-regulating heating element
Insulation: Thermoplastic.
Protective: Tinned Cu braid.
Outer sheath: TPE-O Fluoropolymer.
Mechanical and Thermal Properties
Maximum maintenance temperature: 120℃
Maximum exposure temperature: 210℃
Minimum installation temperature: -45℃
Minimum bending radius: 25 mm
Cable Parameter
| APPROX. Dimension mm | Nominal output at 10℃ W/m | APPROX. Weigh g/m |
|---|---|---|
| 12.4×5.0 | 10 | 120 |
| 12.4×5.0 | 15 | 120 |
| 12.4×5.0 | 20 | 120 |
| 12.4×5.0 | 30 | 120 |
| 12.4×5.0 | 45 | 120 |
| 12.4×5.0 | 60 | 120 |
| 12.4×5.0 | 75 | 120 |
