Constant Wattage Heating Cable up to 260 °C

Constant Wattage Heating Cable up to 260 °C

Application

Vessels, piping, valves
Food processing industry
Frost protection and temperature maintenance on pumps

Standard

DIN VDE 0721-52
EN 62395-1; 2007-05

Voltage Rating

230V

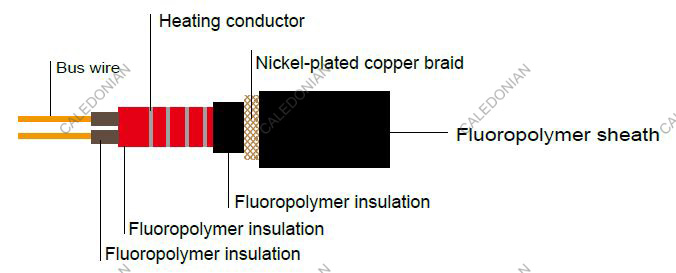

Construction

Bus wire.
Insulation: Fluoropolymer.
Heating conductor.
Protective: Nickel-plated copper braid.
Outer sheath: Fluoropolymer.

Mechanical and Thermal Properties

Nominal temperature: 260℃
Minimum installation temperature: -45℃
Minimum start-up temperature: -45℃
Bus wire cross section: 2x1.5 mm²
Minimum bending radius: 25mm

Cable Parameter

APPROX. Dimensions mm Contact spacing m Nominal output W/m Maximum working temperature °C Maximum heating circuit length m
at 50 °C at 150 °C
8.0x5.5 1.0 15 205 161 119
8.0x5.5 1.0 30 190 98 82.5
8.0x5.5 1.0 45 175 65.5 65.5
8.0x5.5 1.0 60 160 50 50
