Constant Wattage Heating Cable up to 200 °C

Constant Wattage Heating Cable up to 200 °C

Application

Vessels, piping, valves
Food processing industry
Frost protection and temperature maintenance on pumps

Standard

IEC 62395-2, EN 60519-10

Voltage Rating

230V

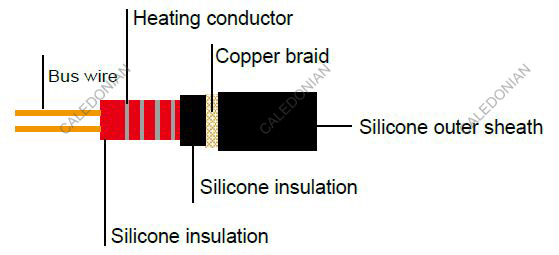

Construction

Bus wire
Insulation: Silicone.
Heating conductor
Protective: Copper braid .
Outer sheath: Silicone

Mechanical and Thermal Properties

Nominal temperature: 200℃
Minimum installation temperature: -60℃
Minimum start-up temperature: -60℃
Bus wire cross section: 2x1.50 mm²

Cable Parameter

APPROX. Dimensions mm Contact spacing m Nominal output W/m Maximum heating circuit length m
at 50 °C at 150 °C
5.25x9.75 1.0 10 198 147
5.25x9.75 1.0 20 139 102.5
5.25x9.75 1.0 30 98 82.5
5.25x9.75 1.0 40 73.5 70.5
