Flame Retardant RG6 A/U Coaxial cables

Flame Retardant Coaxial Cables

APPLICATION

The cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this cable is ideal for use in public, commercial and industrial environments.

STANDARDS

Basic design adapted to MIL-C-17

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

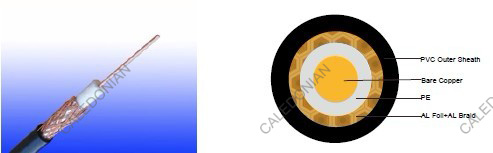

CABLE CONSTRUCTION

Conductors: Bare copper copper wire, solid according to IEC(EN) 60228 class 1.
Insulation: Foamed PE compound.
Overall Screen: Aluminium foil(100%)+Aluminium braid (70%)
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

Physical AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C - +70°C
Temperature Range During Installation (Mobile State): -5°C - +60°C
Minimum Bending Radius: 8 X Overall Diameter

Electrical Properties

IMPEDANCE 75±5Ω
CAPACITANCE 54 NF/KM
Velocity ratio(%) 82
Insulation resistance >5000 Mohm.Km
Shield coverage AL FOIL(100%)+AL 70%
DC resistance
Inner conductor 23.1 Ω/km
Outer conductor 31 Ω/km

Attenuation

Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
50 5.0 1.5
100 6.4 1.96
200 9.2 2.8
500 14.5 4.4
600 15.9 4.9
800 17.7 5.4
1000 21.9 6.7
1350 24.9 7.6
1750 29.0 8.8
2050 33.1 10.1
2400 36.4 11.1

Return Loss

Frequency(MHz) Return Loss (dB)
30-300 >28dB
300-600 >24dB
600-900 >22dB

CONSTRUCTION PARAMETERS

Cable Code Conductor Diameter Nominal Insulation Diameter Nominal Screen No.x Diameter Nominal Overall Diameter Approx. Weight
mm mm No. x mm mm kg/km
FGD RG6 A/U 1.02 4.57 ± 0.20 96 x 0.12 7.00 81.6
