450/750V XLPE Insulated, PVC Sheathed Flame Retardant Power Cables (2-4 Cores)

FGD200 07RV-R (CU/XLPE/PVC 450/750V Class 2)

Flame Retardant Power & Control Cables

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

VOLTAGE RATING

450/750V

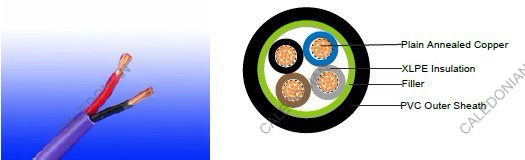

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Filler, binder (if any): PP, PET
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 6 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FGD200 07RV-R
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Overall Diameter Conductor Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Max.Dc Resistance Of Conductor @20°C Approx. Weight
Noxmm2 No./mm mm mm mm mm Ω/km kg/km
2x1.0 7/0.44 1.32 0.7 1.2 8.5 18.1 101
2x1.5 7/0.53 1.59 0.7 1.2 9.1 12.1 120
2x2.5 7/0.67 2.01 0.7 1.2 10.0 7.41 154
2x4.0 7/0.85 2.55 0.7 1.3 11.1 4.61 205
3x1.0 7/0.44 1.32 0.7 1.2 9.0 18.1 118
3x1.5 7/0.53 1.59 0.7 1.2 9.6 12.1 142
3x2.5 7/0,67 2.01 0.7 1.2 10.6 7.41 185
3x4.0 7/0.85 2.55 0.7 1.3 11.8 4.61 251
4x1.0 7/0.44 1.32 0.7 1.2 9.8 18.1 141
4x1.5 7/0.53 1.59 0.7 1.2 10.5 12.1 171
4x2.5 7/0.67 2.01 0.7 1.3 11.6 7.41 226
4x4.0 7/0.85 2.55 0.7 1.3 13.0 4.61 309

Electrical Properties

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross- sectional area Reference Method 4 (enclosed in conduit in thermally insulating wall etc) Reference Method 3 (enclosed in conduit on a wall or in trunking etc) Reference Method 1 (clipped direct) Reference Method 11 (on a perforated cable tray, horizontal or vertical) Reference Method 12 (free air)
Horizontal flat spaced Vertical flat spaced Trefoil
2 cables, single- phase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 2 cables, single- phase a.c. or d.c 3 or 4 cables, 3- phase a.c. 2 cables, single- phase a.c. or d.c. flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, single- phase a.c. or d.c. or flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, single- phase a.c. or d.c. or 3 c ables three phase 2 cables, single- phase a.c. or d.c. or 3 cables three phase 3 cables, trefoil 3- phase a.c.
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
1.0 13 - - - 15 - - - - - -
1.5 18 17 22 19 25 23 - - - - -
2.5 24 23 30 26 34 31 - - - - -
4 33 30 40 35 46 41 - - - - -

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1 and 11 (clipped direct or on trays touching) Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1, 11 and 12 (in trefoil) Ref. Methods 1 and 11(Flat and touching)
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.0 46 46 - - - -
1.5 31 31 27 27 27 27
2.5 19 19 16 16 16 16
4 33 12 10 10 10 10
