Flame Retardant Power & Control Cables
300/500V XLPE Insulated, PVC Sheathed, Screened Power Cables (Multicore)

FGD200 05ROV-R (CU/XLPE/OSCR/PVC 300/500V Class 2)

Flame Retardant Power & Control Cables

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design adapted to BS 5308

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

VOLTAGE RATING

300/500V

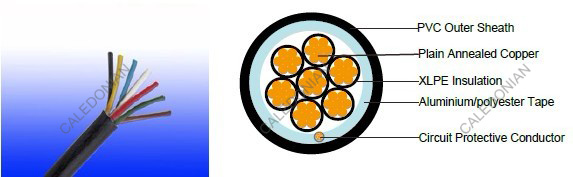

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Filler, binder(if any): PP, Mylar tape
Circuit Protective Conductor: Annealed plain copper (class 2)
Overall Screen: Aluminium/polyester tape
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 6 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FGD200 05ROV-R
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Overall Diameter Conductor Nominal Insulation Thickness Cross- Section Area Of Circuit Protective Conductor Nominal Sheath Thickness Nominal Overall Diameter Max.Dc Resistance Of Conductor @20°C Approx. Weight
Noxmm2 No./mm mm mm mm2 mm mm Ω/km kg/km
7x1.0 7i0.44 1.32 0.6 1.0 1.0 11.2 18.1 186
7x1.5 7i0.53 1.59 0.7 1.5 1.1 12.9 12.1 253
7x2.5 7i0.67 2.01 0.8 2.5 1.2 14.9 7.41 365
12x1.5 7i0.53 1.59 0.7 1.5 1.2 16.8 12.1 404
12x2.5 7i0.67 2.01 0.8 2.5 1.4 19.8 7.41 595
19x1.5 7i0.53 1.59 0.7 1.5 1.3 19.7 12.1 600
19x2.5 7i0.67 2.01 0.8 2.5 1.5 23.2 7.41 885

Electrical Properties

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross- sectional area Reference Method 4 (enclosed in conduit in thermally insulating wall etc) Reference Method 3 (enclosed in conduit on a wall or in trunking etc) Reference Method 1 (clipped direct) Reference Method 11 (on a perforated cable tray, horizontal or vertical) Reference Method 12 (free air)
Horizontal flat spaced Vertical flat spaced Trefoil
2 cables, single- phase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 2 cables, single- phase a.c. or d.c 3 or 4 cables, 3-phase a.c. 2 cables, single- phase a.c. or d.c. flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, single- phase a.c. or d.c. or flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, single- phase a.c. or d.c. or 3 c ables three phase 2 cables, single- phase a.c. or d.c. or 3 cables three phase 3 cables, trefoil 3-phase a.c.
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
1.5 18 17 22 19 25 23 - - - - -
2.5 24 23 30 26 34 31 - - - - -

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1 and 11 (clipped direct or on trays touching) Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1, 11 and 12 (in trefoil) Ref. Methods 1 and 11(Flat and touching)
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31 31 27 27 27 27
2.5 19 19 16 16 16 16
