Fire Resistant Power & Control Cables

300/500V Mica+sR Insulated & Overall screened control cables (2-4 cores& Multicores)

FFX200E 05mSOZ1-U (PH120) (CU/MGT+SR/OSCR/LSZH 300/500V Class 1)
FFX200E 05mSOZ1-R (PH120) (CU/MGT+SR/OSCR/LSZH 300/500V Class 2)

APPLICATION

The 300/500V Mica+sR Insulated & Overall screened control cables are primarly intended for use in the following applications:
BS 5266-1 for emergency lighting of premises
BS 5839-1 for fi re detection and fi re alarm systems in and around building
BS 5839-8 for voice alarm systems
BS 5839-9 for emergency voice communication systems.

STANDARDS

Basic design to BS 7629-1

FIRE PERFORMANCE

Circuit Integrity	IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); BS 8434-2 (120mins); BS 5839-1 Clause 26 2e; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
Circuit Integrity with mechanical shock	EN 50200(PH120); CEI 20-36/4-0
Circuit Integrity with mechanical shock & water spray	EN 50200 annex E
System circuit integrity	DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

300/500 V

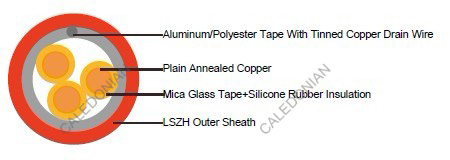

CABLE CONSTRUCTION

Conductors: Plain annealed copper wire, solid according to IEC(EN) 60228 class 1, stranded according to IEC(EN) 60228 class 2.
Insulation: Mica glass fire resistant tape covered by fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling: The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Overall screen: Aluminum/polyester tape with tinned copper drain wire.
Circuit Protective Conductor: Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the 2-, 3- and 4-core cables. Drain wire of 0.5mm2 tinned copper conductor is provided in cables of more than 4 conductors.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE

Insulation Colour
2 cores blue - brown
3 cores brown - black - grey
4 cores blue - brown - black - grey
(Colour Code Up To 4 Cores In Accordance to HD 308)
7 cores centre: brown 1st layer: brown - black - 4 cores white
12 cores centre: brown - black - white 1st layer: brown - black - 7 cores white
19 cores centre: brown 1st layer: brown - black - 4 cores white
2nd layer: brown - black - 10 cores white
(on request the cores can be one colour only, identified by printed numbers
Sheath Colour: Colour red or white (other colours on request)

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical PROPERTIES

Dielectric test:	2000 V r.m.s. x 5' (core/core)
Insulation resistance	≥300 MΩ x km (at 20°C)
Short circuit temperature	350°C

CONSTRUCTION PARAMETERS

Cable Code	No. of Core X Cross Section	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	mm2	mm	mm	mm	kg/km
2 core,
FFX200E 05mSOZ1-U(PH120)	2x1.0	0.6	0.9	7.9	85
FFX200E 05mSOZ1-U(PH120)	2x1.5	0.7	0.9	8.8	105
FFX200E 05mSOZ1-U(PH120)	2x2.5	0.8	1.0	10.2	150
FFX200E 05mSOZ1-R(PH120)	2x1.5	0.7	0.9	9.2	110
FFX200E 05mSOZ1-R(PH120)	2x2.5	0.8	1.0	10.3	155
FFX200E 05mSOZ1-R(PH120)	2x4.0	0.8	1.1	12.2	220
3 core
FFX200E 05mSOZ1-U(PH120)	3x1.0	0.6	0.9	8.4	105
FFX200E 05mSOZ1-U(PH120)	3x1.5	0.7	0.9	9.3	130
FFX200E 05mSOZ1-U(PH120)	3x2.5	0.8	1.0	10.8	190
FFX200E 05mSOZ1-R(PH120)	3x1.5	0.7	0.9	9.4	135
FFX200E 05mSOZ1-R(PH120)	3x2.5	0.8	1.0	10.9	190
FFX200E 05mSOZ1-R(PH120)	3x4.0	0.8	1.1	13.0	280
4 core
FFX200E 05mSOZ1-U(PH120)	4x1.0	0.6	1.0	9.3	125
FFX200E 05mSOZ1-U(PH120)	4x1.5	0.7	1.0	10.3	165
FFX200EE 05mSOZ1-U(PH120)	4x2.5	0.8	1.1	12.0	240
FFX200E 05mSOZ1-R(PH120)	4x1.5	0.7	1.0	10.5	170
FFX200E 05mSOZ1-R(PH120)	4x2.5	0.8	1.1	12.1	250
FFX200E 05mSOZ1-R(PH120)	4x4.0	0.8	1.2	14.4	350
7 core
FFX200E 05mSOZ1-U(PH120)	7x1.0	0.6	1.0	10.5	175
FFX200E 05mSOZ1-U(PH120)	7x1.5	0.7	1.1	12.1	230
12 core
FFX200E 05mSOZ1-U(PH120)	12x1.0	0.6	1.1	14.5	300
FFX200E 05mSOZ1-U(PH120)	12x1.5	0.7	1.2	16.0	380
19 core
FFX200E 05mSOZ1-U(PH120)	19x1.0	0.6	1.2	17.5	470
FFX200E 05mSOZ1-U(PH120)	19x1.5	0.7	1.3	17.5	470

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.

Electrical PROPERTIES

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Nominal Cross Section Area	Reference Method 4 (enclosed in an conduit insulated wall etc)	Reference Method 3 (enclosed in conduit on a wall or ceiling, or in trunking)		Reference Method 1 (clipped direct)		Reference Method 11 (on a perforated cable tray), or Reference Method
	one 3-core cable or one 4-core cable 3-phase a.c.	one 2-core cable single phase a.c. or d.c.	one 3-core cable or one 4-core cable 3-phase a.c.	one 2-core cable singlephase a.c. or d.c.	one 3-core cable or one 4-core cable 3-phase a.c.	one 2-core cable singlephase a.c. or d.c.	one 3-core cable or one 4-core cable 3-phase a.c.
1	2	3	4	5	6	7	8
mm2	A	A	A	A	A	A	A
1.5	16.5	22	19.5	24	22	26	23
2.5	22	30	26	33	30	36	32
4	30	40	35	45	40	49	42

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area	2-core cable d.c.	2-core cable single- phase a.c	3-core or 4-core cable 3-phase a.c.
1	2	3	4
mm2	mV/A/m	mV/A/m	mV/A/m
1.5	31	31	27
2.5	19	19	16
4	12	12	10
