EN 50288-7 STANDARDS PE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multipair)

RE-2Y(St)H 90°C / 300V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN50288-7

FIREPERFORMANCE

FlameRetardance(SingleVerticalWireTest)

EN60332-1-2;IEC60332-1-2;BSEN60332-1-2;VDE0482-332-1;NBNC30-004(cat.F1);NFC32-070-2.1(C2);CEI20-35/1-2;EN50265-2-1*;DINVDE0482-265-2-1*

VOLTAGERATING

300V

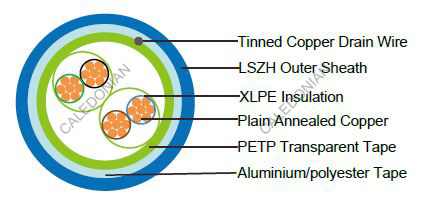

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC60228 Class2.
• Insulation: PE compound,EN50290.2-23.Pairs:Two insulated conductors uiformly twisted together with alaynot exceeding 100mm
• Binder tape: PETP transparent tape
• Overall Screen:Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire,0.5mm2
• Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS76552.6 can be offered). UV resistance, hydrocarbon resistance ,oil resistance, anti rodent and anti termite properties canbe offered as option.

COLOUR CODE

Insulation:Black/White,continuously numbered on white core(1,2.. ) for multipair.

Outer Sheath:Black or blue for intrinsically safe systems

PHYSICAL AND THERMAL PROPERTIES

• Temperature Range During Operation(FixedState):-30°C–+90°C
• Temperature Range During Installation(MobileState):-5°C–+50°C

ELECTRICALPROPERTIES

ConductorAreaSize		mm	0.5	0.75	1.0	1.3	1.5
Insulationthickness(nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductorresistance(20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulationresistance(20°C)		MΩ.km(Min.)	1000
MutualCapacitance(1kHz)		pF/m(Max.)
		≤4pairs	90	90	90	102	102
		allotherpairs	75	75	75	85	85
Capacitanceunbalance(1kHz)		pF/500m(Max.)	500
Inductance		mH/km(Max.)	1
L/R(ratio)(max.)		μH/Ω	25	25	25	40	40
OperatingvoltageUrms		V	300
TestVoltage	CoretoCore	V	1500
	CoretoScreen	V	1500

CONSTRUCTIONPARAMETERS

Cable Code	RE-2Y(St)H
	No.of Pairsx2x CrossSection	Nominal Insulation Thickness	Nominal Outer Sheath Thickness
	No.x2xmm2	mm	mm
0.5mm2,Multipair
RE-2Y(St)H2P0.5	2x2x0.5	0.35	0.9
RE-2Y(St)H4P0.5	4x2x0.5	0.35	0.9
RE-2Y(St)H5P0.5	5x2x0.5	0.35	1.0
RE-2Y(St)H6P0.5	6x2x0.5	0.35	1.0
RE-2Y(St)H8P0.5	8x2x0.5	0.35	1.0
RE-2Y(St)H10P0.5	10x2x0.5	0.35	1.1
RE-2Y(St)H12P0.5	12x2x0.5	0.35	1.1
RE-2Y(St)H16P0.5	16x2x0.5	0.35	1.1
RE-2Y(St)H20P0.5	20x2x0.5	0.35	1.2
RE-2Y(St)H24P0.5	24x2x0.5	0.35	1.2
0.75mm2,Multipair
RE-2Y(St)H2P0.75	2x2x0.75	0.38	0.9
RE-2Y(St)H4P0.75	3x2x0.75	0.38	1.0
RE-2Y(St)H5P0.75	4x2x0.75	0.38	1.0
RE-2Y(St)H6P0.75	5x2x0.75	0.38	1.0
RE-2Y(St)H8P0.75	8x2x0.75	0.38	1.1
RE-2Y(St)H10P0.75	10x2x0.75	0.38	1.1
RE-2Y(St)H12P0.75	12x2x0.75	0.38	1.1
RE-2Y(St)H16P0.75	16x2x0.75	0.38	1.2
RE-2Y(St)H20P0.75	20x2x0.75	0.38	1.3
RE-2Y(St)H24P0.75	24x2x0.75	0.38	1.3
1.0mm2,Multipair
RE-2Y(St)H2P1.0	2x2x1.0	0.4	0.9
RE-2Y(St)H4P1.0	3x2x1.0	0.4	1.0
RE-2Y(St)H5P1.0	4x2x1.0	0.4	1.0
RE-2Y(St)H6P1.0	5x2x1.0	0.4	1.0
RE-2Y(St)H8P1.0	8x2x1.0	0.4	1.1
RE-2Y(St)H10P1.0	10x2x1.0	0.4	1.1
RE-2Y(St)H12P1.0	12x2x1.0	0.4	1.2
RE-2Y(St)H16P1.0	16x2x1.0	0.4	1.2
RE-2Y(St)H20P1.0	20x2x1.0	0.4	1.3
RE-2Y(St)H24P1.0	24x2x1.0	0.4	1.4
1.3mm2,Multipair
RE-2Y(St)H2P1.3	2x2x1.3	0.45	1.0
RE-2Y(St)H4P1.3	3x2x1.3	0.45	1.0
RE-2Y(St)H5P1.3	4x2x1.3	0.45	1.1
RE-2Y(St)H6P1.3	5x2x1.3	0.45	1.1
RE-2Y(St)H8P1.3	8x2x1.3	0.45	1.2
RE-2Y(St)H10P1.3	10x2x1.3	0.45	1.2
RE-2Y(St)H12P1.3	12x2x1.3	0.45	1.3
RE-2Y(St)H16P1.3	16x2x1.3	0.45	1.3
RE-2Y(St)H20P1.3	20x2x1.3	0.45	1.4
RE-2Y(St)H24P1.3	24x2x1.3	0.45	1.5
1.5mm2,Multipair
RE-2Y(St)H2P1.5	2x2x1.5	0.45	1.0
RE-2Y(St)H4P1.5	3x2x1.5	0.45	1.1
RE-2Y(St)H5P1.5	4x2x1.5	0.45	1.1
RE-2Y(St)H6P1.5	5x2x1.5	0.45	1.2
RE-2Y(St)H8P1.5	8x2x1.5	0.45	1.2
RE-2Y(St)H10P1.5	10x2x1.5	0.45	1.3
RE-2Y(St)H12P1.5	12x2x1.5	0.45	1.3
RE-2Y(St)H16P1.5	16x2x1.5	0.45	1.4
RE-2Y(St)H20P1.5	20x2x1.5	0.45	1.5
RE-2Y(St)H24P1.5	24x2x1.5	0.45	1.5

Note : Other conductor sizes & core configurations are available upon request.
