EN 50288-7 STANDARDS PE Insulated, LSZH Sheathed, Individual & Overall Screened, Armoured Instrumentation Cables (Multitriple)

RE-2Y(St)HSWAH-TiMF 70°C / 300 V

APPLICATION:

These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire, these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

STANDARDS

Basic design to EN50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60% of tensite strength/min.60% of elongation.

VOLTAGE RATING

300V

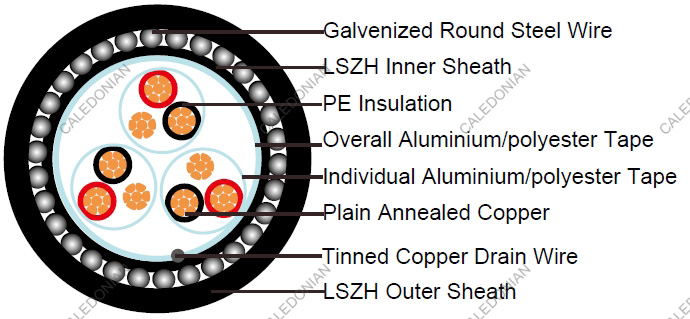

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: PE compound, EN 50290. 2-23.
• Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
• Pair:Two conductors twisted to form a pair
• Lay-up: Pairs laid up in layers of optimum pitch Separator: Polyester tape
• Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2?
• Inner sheath: HFFR compound, EN 50290-2-27
• Armour: Galvenized round steel wire, EN 10257-1
• Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent andanti termite properties can be offered as option.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.

Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +70°C
• Temperature Range During Installation (Mobile State): -5°C – +50C
• Minimum Bending Radius: 10 X Overall Diameter

Electrical PROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	1000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Inductance		mH/km(Max.)	1
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code?	RE-2Y(St)HSWAH-TiMF
	No. of Triples x3xCross Section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Overall Diameter Over InnerSheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness
	No.x3xmm2	mm	mm	mm	mm	mm
0.5mm2, Multitriple
RE-2Y(St)HSWAH-TiMF 2T0.5	2x3x0.5	0.35	1.0	9.7	0.9	1.4
RE-2Y(St)HSWAH-TiMF 4T0.5	4x3x0.5	0.35	1.0	11.1	0.9	1.4
RE-2Y(St)HSWAH-TiMF 5T0.5	5x3x0.5	0.35	1.1	12.4	0.9	1.5
RE-2Y(St)HSWAH-TiMF 6T0.5	6x3x0.5	0.35	1.1	14.0	0.9	1.5
RE-2Y(St)HSWAH-TiMF 8T0.5	8x3x0.5	0.35	1.1	14.9	0.9	1.5
RE-2Y(St)HSWAH-TiMF 10T0.5	10x3x0.5	0.35	1.2	17.0	1.25	1.6
RE-2Y(St)HSWAH-TiMF 12T0.5	12x3x0.5	0.35	1.2	17.6	1.25	1.6
RE-2Y(St)HSWAH-TiMF 16T0.5	16x3x0.5	0.35	1.3	20.1	1.25	1.7
RE-2Y(St)HSWAH-TiMF 20T0.5	20x3x0.5	0.35	1.4	22.3	1.25	1.7
RE-2Y(St)HSWAH-TiMF 24T0.5	24x3x0.5	0.35	1.5	24.4	1.25	1.8
0.75mm2, Multitriple
RE-2Y(St)HSWAH-TiMF 2T0.75	2x3x0.75	0.38	1.0	10.6	0.9	1.4
RE-2Y(St)HSWAH-TiMF 4T0.75	4x3x0.75	0.38	1.1	12.4	0.9	1.5
RE-2Y(St)HSWAH-TiMF 5T0.75	5x3x0.75	0.38	1.1	13.7	0.9	1.5
RE-2Y(St)HSWAH-TiMF 6T0.75	6x3x0.75	0.38	1.1	15.4	0.9	1.5
RE-2Y(St)HSWAH-TiMF 8T0.75	8x3x0.75	0.38	1.2	16.7	0.9	1.6
RE-2Y(St)HSWAH-TiMF 10T0.75	10x3x0.75	0.38	1.3	19.0	1.25	1.6
RE-2Y(St)HSWAH-TiMF 12T0.75	12x3x0.75	0.38	1.3	19.7	1.25	1.7
RE-2Y(St)HSWAH-TiMF 16T0.75	16x3x0.75	0.38	1.4	22.5	1.25	1.7
RE-2Y(St)HSWAH-TiMF 20T0.75	20x3x0.75	0.38	1.5	24.9	1.25	1.8
RE-2Y(St)HSWAH-TiMF 24T0.75	24x3x0.75	0.38	1.6	27.2	1.25	1.9
1.0mm2, Multitriple
RE-2Y(St)HSWAH-TiMF 2T1.0	2x3x1	0.4	1.0	11.5	0.9	1.4
RE-2Y(St)HSWAH-TiMF 4T1.0	4x3x1	0.4	1.1	13.4	0.9	1.5
RE-2Y(St)HSWAH-TiMF 5T1.0	5x3x1	0.4	1.1	14.8	0.9	1.5
RE-2Y(St)HSWAH-TiMF 6T1.0	6x3x1	0.4	1.2	16.9	0.9	1.5
RE-2Y(St)HSWAH-TiMF 8T1.0	8x3x1	0.4	1.2	18.1	1.25	1.6
RE-2Y(St)HSWAH-TiMF 10T1.0	10x3x1	0.4	1.3	20.7	1.25	1.7
RE-2Y(St)HSWAH-TiMF 12T1.0	12x3x1	0.4	1.3	21.4	1.25	1.7
RE-2Y(St)HSWAH-TiMF 16T1.0	16x3x1	0.4	1.4	24.4	1.25	1.7
RE-2Y(St)HSWAH-TiMF 20T1.0	20x3x1	0.4	1.5	27.1	1.25	1.8
RE-2Y(St)HSWAH-TiMF 24T1.0	24x3x1	0.4	1.6	29.6	1.6	1.9
1.3mm2, Multitriple
RE-2Y(St)HSWAH-TiMF 2T1.3	2x3x1,3	0.45	1.1	12.8	0.9	1.5
RE-2Y(St)HSWAH-TiMF 4T1.3	4x3x1,3	0.45	1.1	14.7	0.9	1.5
RE-2Y(St)HSWAH-TiMF 5T1.3	5x3x1,3	0.45	1.2	16.5	0.9	1.6
RE-2Y(St)HSWAH-TiMF 6T1.3	6x3x1,3	0.45	1.3	18.8	1.25	1.6
RE-2Y(St)HSWAH-TiMF 8T1.3	8x3x1,3	0.45	1.3	20.1	1.25	1.7
RE-2Y(St)HSWAH-TiMF 10T1.3	10x3x1,3	0.45	1.4	23.0	1.25	1.8
RE-2Y(St)HSWAH-TiMF 12T1.3	12x3x1,3	0.45	1.5	24.0	1.25	1.8
RE-2Y(St)HSWAH-TiMF 16T1.3	16x3x1,3	0.45	1.6	27.4	1.25	1.9
RE-2Y(St)HSWAH-TiMF 20T1.3	20x3x1,3	0.45	1.7	30.4	1.6	2.0
RE-2Y(St)HSWAH-TiMF 24T1.3	24x3x1,3	0.45	1.8	33.1	1.6	2.0
RE-2Y(St)HSWAH-TiMF 2T1.5	2x3x1,5	0.45	1.1	13.2	0.9	1.5
RE-2Y(St)HSWAH-TiMF 4T1.5	4x3x1,5	0.45	1.2	15.4	0.9	1.5
RE-2Y(St)HSWAH-TiMF 5T1.5	5x3x1,5	0.45	1.2	17.1	1.25	1.6
RE-2Y(St)HSWAH-TiMF 6T1.5	6x3x1,5	0.45	1.3	19.5	1.25	1.6
RE-2Y(St)HSWAH-TiMF 8T1.5	8x3x1,5	0.45	1.4	21.1	1.25	1.7
RE-2Y(St)HSWAH-TiMF 10T1.5	10x3x1,5	0.45	1.5	24.1	1.25	1.8
RE-2Y(St)HSWAH-TiMF 12T1.5	12x3x1,5	0.45	1.5	24.9	1.25	1.8
RE-2Y(St)HSWAH-TiMF 16T1.5	16x3x1,5	0.45	1.6	28.4	1.6	1.9
RE-2Y(St)HSWAH-TiMF 20T1.5	20x3x1,5	0.45	1.7	31.6	1.6	2.0
RE-2Y(St)HSWAH-TiMF 24T1.5	24x3x1,5	0.45	1.8	34.4	1.6	2.1

Note : Other conductor sizes & core configurations are available upon request.
