EN 50288-7 STANDARDS PE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multitriple)RE-2Y(St)H 90°C / 300 V

EN 50288-7 Cable

APPLICATION:

These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistryand petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire, these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet locations; on racks, trays, in conduits.

STANDARDS

Basic design to EN50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60% of tensite strength/min.60% of elongation.

VOLTAGE RATING

300V

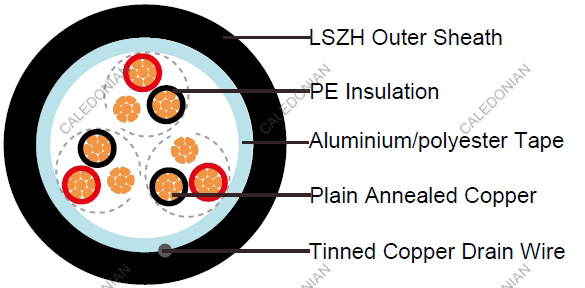

CABLE CONSTRUCTION

  • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
  • Insulation: PE compound, EN 50290. 2-23.
  • Triple: Three conductors twisted to form a triple
  • Lay-up: Triples laid up in layers of optimum pitch
  • Separator: Polyester tape
  • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2?
  • Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and antitermite properties can be offered as option.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.

Outer Sheath: Black or Blue for intrinsically safe systems

PHYSICAL AND THERMAL PROPERTIES

  • Temperature Range During Operation (Fixed State): -30°C – +90°C
  • Temperature Range During Installation (Mobile State): -5°C – +50C
  • Minimum Bending Radius: 7.5 X Overall Diameter

ELETRICAL PROPERTIES

Conductor Area Size mm 2 0.5 0.75 1.0 1.3 1.5
Insulation thickness (nominal) mm 0.35 0.38 0.4 0.45 0.45
Conductor resistance (20°C) Ω/km 36.0 24.5 18.1 13.9 12.1
Insulation resistance (20°C) MΩ.km(Min.) 1000 1000 1000 1000 1000
Mutual Capacitance (1 kHz) up to 4 trples pF/m(Max.) 90 90 90 102 102
  above 4 trples pF/m(Max.) 75 75 75 85 85
Inductance mH/km(Max.) 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40
Operating voltage V 300
Test Voltage Urms Core to Core V 1500
Core to Screen V 1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code? RE-2Y(St)H
No. of Triples x3xCross Section Nominal Insulation Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
No.x3xmm2 mm mm mm kg/km
0.5mm2, Multitriple
RE-2Y(St)H 2T0.5 2x3x0.50 0.35 0.9 8.4 92
RE-2Y(St)H 4T0.5 4x3x0.50 0.35 1.0 9.8 124
RE-2Y(St)H 5T0.5 5x3x0.50 0.35 1.0 10.8 155
RE-2Y(St)H 6T0.5 6x3x0.50 0.35 1.0 12.1 186
RE-2Y(St)H 8T0.5 8x3x0.50 0.35 1.1 13.1 222
RE-2Y(St)H 10T0.5 10x3x0.50 0.35 1.1 14.7 276
RE-2Y(St)H 12T0.5 12x3x0.50 0.35 1.1 15.2 325
RE-2Y(St)H 16T0.5 16x3x0.50 0.35 1.2 17.4 416
RE-2Y(St)H 20T0.5 20x3x0.50 0.35 1.2 19.1 510
RE-2Y(St)H 24T0.5 24x3x0.50 0.35 1.3 20.9 597
0.75mm2, Multitriple
RE-2Y(St)H 2T0.75 2x3x0.75 0.38 0.9 9.3 114
RE-2Y(St)H 4T0.75 4x3x0.75 0.38 1.0 10.9 163
RE-2Y(St)H 5T0.75 5x3x0.75 0.38 1.0 12.0 199
RE-2Y(St)H 6T0.75 6x3x0.75 0.38 1.1 13.7 246
RE-2Y(St)H 8T0.75 8x3x0.75 0.38 1.1 14.7 297
RE-2Y(St)H 10T0.75 10x3x0.75 0.38 1.2 16.7 368
RE-2Y(St)H 12T0.75 12x3x0.75 0.38 1.2 17.3 425
RE-2Y(St)H 16T0.75 16x3x0.75 0.38 1.3 19.7 558
RE-2Y(St)H 20T0.75 20x3x0.75 0.38 1.3 21.7 685
RE-2Y(St)H 24T0.75 24x3x0.75 0.38 1.4 23.7 806
1.0mm2, Multitriple
RE-2Y(St)H 2T1.0 2x3x1 0.4 1.0 10.4 135
RE-2Y(St)H 4T1.0 4x3x1 0.4 1.0 11.9 203
RE-2Y(St)H 5T1.0 5x3x1 0.4 1.0 13.2 252
RE-2Y(St)H 6T1.0 6x3x1 0.4 1.1 15.0 304
RE-2Y(St)H 8T1.0 8x3x1 0.4 1.1 16.1 381
RE-2Y(St)H 10T1.0 10x3x1 0.4 1.2 18.4 463
RE-2Y(St)H 12T1.0 12x3x1 0.4 1.2 19.0 546
RE-2Y(St)H 16T1.0 16x3x1 0.4 1.3 21.7 720
RE-2Y(St)H 20T1.0 20x3x1 0.4 1.4 24.1 884
RE-2Y(St)H 24T1.0 24x3x1 0.4 1.4 26.1 1053
1.3mm2, Multitriple
RE-2Y(St)H 2T1.3 2x3x1.3 0.45 1.0 11.5 175
RE-2Y(St)H 4T1.3 4x3x1.3 0.45 1.1 13.4 252
RE-2Y(St)H 5T1.3 5x3x1.3 0.45 1.1 14.8 319
RE-2Y(St)H 6T1.3 6x3x1.3 0.45 1.2 16.9 388
RE-2Y(St)H 8T1.3 8x3x1.3 0.45 1.2 18.1 476
RE-2Y(St)H 10T1.3 10x3x1.3 0.45 1.3 20.7 591
RE-2Y(St)H 12T1.3 12x3x1.3 0.45 1.3 21.4 697
RE-2Y(St)H 16T1.3 16x3x1.3 0.45 1.4 24.4 921
RE-2Y(St)H 20T1.3 20x3x1.3 0.45 1.5 27.1 1128
RE-2Y(St)H 24T1.3 24x3x1.3 0.45 1.6 29.6 1341
1.5mm2, Multitriple
RE-2Y(St)H 2T1.5 2x3x1.5 0.45 1.0 11.9 192
RE-2Y(St)H 4T1.5 4x3x1.5 0.45 1.1 14.0 288
RE-2Y(St)H 5T1.5 5x3x1.5 0.45 1.1 15.4 356
RE-2Y(St)H 6T1.5 6x3x1.5 0.45 1.2 17.6 433
RE-2Y(St)H 8T1.5 8x3x1.5 0.45 1.3 19.1 543
RE-2Y(St)H 10T1.5 10x3x1.5 0.45 1.3 21.6 675
RE-2Y(St)H 12T1.5 12x3x1.5 0.45 1.4 22.5 782
RE-2Y(St)H 16T1.5 16x3x1.5 0.45 1.5 25.7 1035
RE-2Y(St)H 20T1.5 20x3x1.5 0.45 1.6 28.6 1271
RE-2Y(St)H 24T1.5 24x3x1.5 0.45 1.7 31.1 1514
Note : Other conductor sizes & core configurations are available upon request.
