EN 50288-7 STANDARDS PVC Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multicore)
RE-Y(St)Y 90°C / 500V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

500V

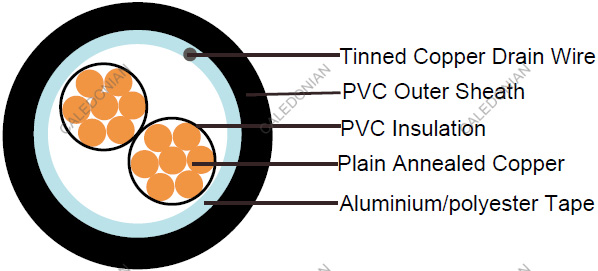

CABLE CONSTRUCTION

EN50288-7

  • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
  • Insulation: PVC compound as per EN 50290-2-21.
  • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
  • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon< resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

  • Insulation: Black numbered
  • Outer Sheath: Black, blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

  • Temperature Range During Operation (Fixed State): -30°C – +90°C
  • Temperature Range During Installation (Mobile State): -5°C – +50°C
  • Minimum Bending Radius: 7.5 X Overall Diameter
  • Sunlight Resistance: UL 1581 section 1200
  • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5 2.5
Insulation thickness (nominal) mm 0.55 0.55 0.55 0.6 0.6 0.7
Conductor resistance (20°C) Ω/km 36.7 25.0 18.5 14.2 12.3 7.4
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz) pF/m(Max.) 115
Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
L / R (ratio) (max.) μH/Ω 25 25 25 40 40 60
Operating voltage V 500
Test Voltage Urms Core to Core V 2000
Core to Screen V 2000

CONSTRUCTION PARAMETERS

Caledonian Cable Code RE-Y(St)Y
No. of Core x1xCross Section Nominal Insulation Thickness NominalSheath Thickness
  No.x1xmm2 mm mm
0.5mm2, Multicore
RE-Y(St)Y 2C0.5 2x1x0.5 0.55 0.9
RE-Y(St)Y 3C0.5 3x1x0.5 0.55 0.9
RE-Y(St)Y 4C0.5 4x1x0.5 0.55 0.9
RE-Y(St)Y 5C0.5 5x1x0.5 0.55 0.9
RE-Y(St)Y 8C0.5 8x1x0.5 0.55 1.0
RE-Y(St)Y 10C0.5 10x1x0.5 0.55 1.0
RE-Y(St)Y 12C0.5 12x1x0.5 0.55 1.0
RE-Y(St)Y 14C0.5 14x1x0.5 0.55 1.0
RE-Y(St)Y 16C0.5 16x1x0.5 0.55 1.1
RE-Y(St)Y 20C0.5 20x1x0.5 0.55 1.1
RE-Y(St)Y 24C0.5 24x1x0.5 0.55 1.1
RE-Y(St)Y 27C0.5 27x1x0.5 0.55 1.2
RE-Y(St)Y 30C0.5 30x1x0.5 0.55 1.2
RE-Y(St)Y 37C0.5 37x1x0.5 0.55 1.2
RE-Y(St)Y 40C0.5 40x1x0.5 0.55 1.2
0.75mm2, Multicore
RE-Y(St)Y 2C0.75 2x1x0.75 0.55 0.9
RE-Y(St)Y 3C0.75 3x1x0.75 0.55 0.9
RE-Y(St)Y 4C0.75 4x1x0.75 0.55 0.9
RE-Y(St)Y 5C0.75 5x1x0.75 0.55 0.9
RE-Y(St)Y 8C0.75 8x1x0.75 0.55 1.0
RE-Y(St)Y 10C0.75 10x1x0.75 0.55 1.0
RE-Y(St)Y 12C0.75 12x1x0.75 0.55 1.0
RE-Y(St)Y 14C0.75 14x1x0.75 0.55 1.1
RE-Y(St)Y 16C0.75 16x1x0.75 0.55 1.1
RE-Y(St)Y 20C0.75 20x1x0.75 0.55 1.1
RE-Y(St)Y 24C0.75 24x1x0.75 0.55 1.2
RE-Y(St)Y 27C0.75 27x1x0.75 0.55 1.2
RE-Y(St)Y 30C0.75 30x1x0.75 0.55 1.2
RE-Y(St)Y 37C0.75 37x1x0.75 0.55 1.2
RE-Y(St)Y 40C0.75 40x1x0.75 0.55 1.3
1.0mm2, Multicore
RE-Y(St)Y 2C1.0 2x1x1.0 0.55 0.9
RE-Y(St)Y 3C1.0 3x1x1.0 0.55 0.9
RE-Y(St)Y 4C1.0 4x1x1.0 0.55 0.9
RE-Y(St)Y 5C1.0 5x1x1.0 0.55 0.9
RE-Y(St)Y 8C1.0 8x1x1.0 0.55 1.0
RE-Y(St)Y 10C1.0 10x1x1.0 0.55 1.0
RE-Y(St)Y 12C1.0 12x1x1.0 0.55 1.0
RE-Y(St)Y 14C1.0 14x1x1.0 0.55 1.1
RE-Y(St)Y 16C1.0 16x1x1.0 0.55 1.1
RE-Y(St)Y 20C1.0 20x1x1.0 0.55 1.1
RE-Y(St)Y 24C1.0 24x1x1.0 0.55 1.2
RE-Y(St)Y 27C1.0 27x1x1.0 0.55 1.2
RE-Y(St)Y 30C1.0 30x1x1.0 0.55 1.2
RE-Y(St)Y 37C1.0 37x1x1.0 0.55 1.2
RE-Y(St)Y 40C1.0 40x1x1.0 0.55 1.3
1.3mm2, Multicore
RE-Y(St)Y 2C1.3 2x1x1.3 0.6 0.9
RE-Y(St)Y 3C1.3 3x1x1.3 0.6 0.9
RE-Y(St)Y 4C1.3 4x1x1.3 0.6 0.9
RE-Y(St)Y 5C1.3 5x1x1.3 0.6 1.0
RE-Y(St)Y 8C1.3 8x1x1.3 0.6 1.0
RE-Y(St)Y 10C1.3 10x1x1.3 0.6 1.1
RE-Y(St)Y 12C1.3 12x1x1.3 0.6 1.1
RE-Y(St)Y 14C1.3 14x1x1.3 0.6 1.1
RE-Y(St)Y 16C1.3 16x1x1.3 0.6 1.1
RE-Y(St)Y 20C1.3 20x1x1.3 0.6 1.2
RE-Y(St)Y 24C1.3 24x1x1.3 0.6 1.2
RE-Y(St)Y 27C1.3 27x1x1.3 0.6 1.3
RE-Y(St)Y 30C1.3 30x1x1.3 0.6 1.3
RE-Y(St)Y 37C1.3 37x1x1.3 0.6 1.3
RE-Y(St)Y 40C1.3 40x1x1.3 0.6 1.4
1.5mm2, Multicore
RE-Y(St)Y 2C1.5 2x1x1.5 0.6 0.9
RE-Y(St)Y 3C1.5 3x1x1.5 0.6 0.9
RE-Y(St)Y 4C1.5 4x1x1.5 0.6 0.9
RE-Y(St)Y 5C1.5 5x1x1.5 0.6 1.0
RE-Y(St)Y 8C1.5 8x1x1.5 0.6 1.0
RE-Y(St)Y 10C1.5 10x1x1.5 0.6 1.1
RE-Y(St)Y 12C1.5 12x1x1.5 0.6 1.1
RE-Y(St)Y 14C1.5 14x1x1.5 0.6 1.1
RE-Y(St)Y 16C1.5 16x1x1.5 0.6 1.1
RE-Y(St)Y 20C1.5 20x1x1.5 0.6 1.2
RE-Y(St)Y 24C1.5 24x1x1.5 0.6 1.3
RE-Y(St)Y 27C1.5 27x1x1.5 0.6 1.3
RE-Y(St)Y 30C1.5 30x1x1.5 0.6 1.3
RE-Y(St)Y 37C1.5 37x1x1.5 0.6 1.4
RE-Y(St)Y 40C1.5 40x1x1.5 0.6 1.4
2.52, Multicore
RE-Y(St)Y 2C2.5 2x1x2.5 0.7 0.9
RE-Y(St)Y 3C2.5 3x1x2.5 0.7 1.0
RE-Y(St)Y 4C2.5 4x1x2.5 0.7 1.0
RE-Y(St)Y 5C2.5 5x1x2.5 0.7 1.0
RE-Y(St)Y 8C2.5 8x1x2.5 0.7 1.1
RE-Y(St)Y 10C2.5 10x1x2.5 0.7 1.2
RE-Y(St)Y 12C2.5 12x1x2.5 0.7 1.2
RE-Y(St)Y 14C2.5 14x1x2.5 0.7 1.2
RE-Y(St)Y 16C2.5 16x1x2.5 0.7 1.3
RE-Y(St)Y 20C2.5 20x1x2.5 0.7 1.3
RE-Y(St)Y 24C2.5 24x1x2.5 0.7 1.4
RE-Y(St)Y 27C2.5 27x1x2.5 0.7 1.4
RE-Y(St)Y 30C2.5 30x1x2.5 0.7 1.5
RE-Y(St)Y 37C2.5 37x1x2.5 0.7 1.5
RE-Y(St)Y 40C2.5 40x1x2.5 0.7 1.6

Note : Other conductor sizes & core configurations are available upon request.
