EN 50288-7 STANDARDS PE Insulated, PVC Sheathed, Overall Screened & Armoured Instrumentation Cables (Multitriple)
RE-2Y(St)YSWAY 70°C / 300 V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

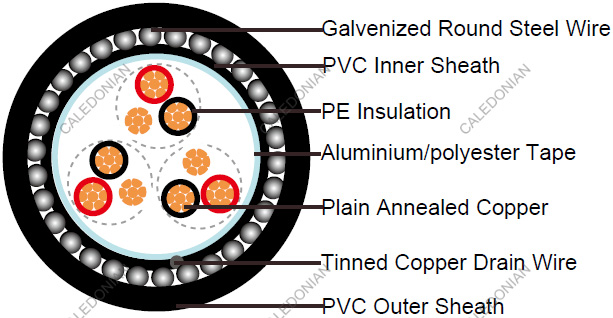

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: PE compound as per EN 50290. 2-23.
• Pair:Two conductors twisted to form a pair
• Lay-up: Pairs laid up in layers of optimum pitch
• Separator: Polyester tape
• Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
• Inner Sheath: Thermoplastic PVC compound
• Armour: Galvenized round steel wire, EN 10257-1
• Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

• Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
• Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +70°C

• Temperature Range During Installation (Mobile State): -5°C – +50°C
• Minimum Bending Radius: 10 X Overall Diameter
• Sunlight Resistance: UL 1581 section 1200
• Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km (Min.)	5000
Mutual Capacitance (1kHz)		pF/m (Max.)
		≤4 pairs	90	90	90	102	102
		all other pairs	75	75	75	85	85
Capacitance unbalance (1kHz)		pF/500m (Max.)	500
L/R (ratio) (max.)		μH/Ω	25	25	25	40	40
Inductance		mH/km (Max.)	1
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2Y(St)YSWAY
	No. of Triples x3xCross Section	Nominal Insulation Thick- ness	Nominal Inner Sheath Thickness	Nominal Overall Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thick- ness
	No.x3xmm2	mm	mm	mm	mm	mm
0.5mm2, Multitriple
RE-2Y(St)YSWAY 2T0.5	2x3x0.5	0.35	0.9	8.4	0.9	1.4
RE-2Y(St)YSWAY 4T0.5	4x3x0.5	0.35	1.0	9.8	0.9	1.4
RE-2Y(St)YSWAY 5T0.5	5x3x0.5	0.35	1.0	10.8	0.9	1.4
RE-2Y(St)YSWAY 6T0.5	6x3x0.5	0.35	1.0	12.1	0.9	1.4
RE-2Y(St)YSWAY 8T0.5	8x3x0.5	0.35	1.1	13.1	0.9	1.5
RE-2Y(St)YSWAY 10T0.5	10x3x0.5	0.35	1.1	14.7	0.9	1.5
RE-2Y(St)YSWAY 12T0.5	12x3x0.5	0.35	1.1	15.2	0.9	1.5
RE-2Y(St)YSWAY 16T0.5	16x3x0.5	0.35	1.2	17.4	0.9	1.6
RE-2Y(St)YSWAY 20T0.5	20x3x0.5	0.35	1.2	19.1	1.25	1.6
RE-2Y(St)YSWAY 24T0.5	24x3x0.5	0.35	1.3	20.9	1.25	1.7
0.75mm2, Multitriple
RE-2Y(St)YSWAY 2T0.75	2x3x0.75	0.38	1.0	10.6	0.9	1.4
RE-2Y(St)YSWAY 4T0.75	4x3x0.75	0.38	1.1	12.4	0.9	1.4
RE-2Y(St)YSWAY 5T0.75	5x3x0.75	0.38	1.1	13.7	0.9	1.4
RE-2Y(St)YSWAY 6T0.75	6x3x0.75	0.38	1.1	15.4	0.9	1.5
RE-2Y(St)YSWAY 8T0.75	8x3x0.75	0.38	1.2	16.7	0.9	1.5
RE-2Y(St)YSWAY 10T0.75	10x3x0.75	0.38	1.3	19.0	0.9	1.5
RE-2Y(St)YSWAY 12T0.75	12x3x0.75	0.38	1.3	19.7	0.9	1.7
RE-2Y(St)YSWAY 16T0.75	16x3x0.75	0.38	1.4	22.5	1.25	1.6
RE-2Y(St)YSWAY 20T0.75	20x3x0.75	0.38	1.5	24.9	1.25	1.7
RE-2Y(St)YSWAY 24T0.75	24x3x0.75	0.38	1.6	27.2	1.25	1.7
1.0mm2, Multitriple
RE-2Y(St)YSWAY 2T1.0	2x3x1	0.4	1.0	11.5	0.9	1.4
RE-2Y(St)YSWAY 4T1.0	4x3x1	0.4	1.1	13.4	0.9	1.4
RE-2Y(St)YSWAY 5T1.0	5x3x1	0.4	1.1	14.8	0.9	1.5
RE-2Y(St)YSWAY 6T1.0	6x3x1	0.4	1.2	16.9	0.9	1.5
RE-2Y(St)YSWAY 8T1.0	8x3x1	0.4	1.2	18.1	0.9	1.5
RE-2Y(St)YSWAY 10T1.0	10x3x1	0.4	1.3	20.7	0.9	1.6
RE-2Y(St)YSWAY 12T1.0	12x3x1	0.4	1.3	21.4	1.25	1.6
RE-2Y(St)YSWAY 16T1.0	16x3x1	0.4	1.4	24.4	1.25	1.7
RE-2Y(St)YSWAY 20T1.0	20x3x1	0.4	1.5	27.1	1.25	1.7
RE-2Y(St)YSWAY 24T1.0	24x3x1	0.4	1.6	29.6	1.25	1.8
1.3mm2, Multitriple
RE-2Y(St)YSWAY 2T1.3	2x3x1,3	0.45	1.1	12.8	0.9	1.4
RE-2Y(St)YSWAY 4T1.3	4x3x1,3	0.45	1.1	14.7	0.9	1.5
RE-2Y(St)YSWAY 5T1.3	5x3x1,3	0.45	1.2	16.5	0.9	1.5
RE-2Y(St)YSWAY 6T1.3	6x3x1,3	0.45	1.3	18.8	0.9	1.5
RE-2Y(St)YSWAY 8T1.3	8x3x1,3	0.45	1.3	20.1	0.9	1.6
RE-2Y(St)YSWAY 10T1.3	10x3x1,3	0.45	1.4	23.0	1.25	1.7
RE-2Y(St)YSWAY 12T1.3	12x3x1,3	0.45	1.5	24.0	1.25	1.7
RE-2Y(St)YSWAY 16T1.3	16x3x1,3	0.45	1.6	27.4	1.25	1.8
RE-2Y(St)YSWAY 20T1.3	20x3x1,3	0.45	1.7	30.4	1.25	1.8
RE-2Y(St)YSWAY 24T1.3	24x3x1,3	0.45	1.8	33.1	1.60	1.9
1.5mm2, Multitriple
RE-2Y(St)YSWAY 2T1.5	2x3x1,5	0.45	1.1	13.2	0.9	1.4
RE-2Y(St)YSWAY 4T1.5	4x3x1,5	0.45	1.2	15.4	0.9	1.5
RE-2Y(St)YSWAY 5T1.5	5x3x1,5	0.45	1.2	17.1	0.9	1.5
RE-2Y(St)YSWAY 6T1.5	6x3x1,5	0.45	1.3	19.5	0.9	1.6
RE-2Y(St)YSWAY 8T1.5	8x3x1,5	0.45	1.4	21.1	1.25	1.6
RE-2Y(St)YSWAY 10T1.5	10x3x1,5	0.45	1.5	24.1	1.25	1.7
RE-2Y(St)YSWAY 12T1.5	12x3x1,5	0.45	1.5	24.9	1.25	1.7
RE-2Y(St)YSWAY 16T1.5	16x3x1,5	0.45	1.6	28.4	1.25	1.8
RE-2Y(St)YSWAY 20T1.5	20x3x1,5	0.45	1.7	31.6	1.25	1.9
RE-2Y(St)YSWAY 24T1.5	24x3x1,5	0.45	1.8	34.4	1.60	2.0

Note : Other conductor sizes & core configurations are available upon request.
