EN 50288-7 STANDARDS PE Insulated, PVC Sheathed, Individual & Overall Screened Instrumentation Cables (Multitriple)
RE-2Y(St)Y-TIMF 70°C / 300 V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

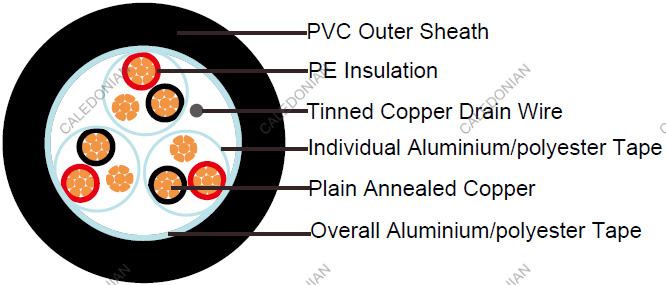

CABLE CONSTRUCTION

EN50288-7

  • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
  • Insulation: PE compound as per EN 50290. 2-23.
  • Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
  • Triple: Three conductors twisted to form a triple
  • **TiMF Construction: Polyester tape above the triple, AL-PES tape over solid tinned copper drain wire, 0,60 mm
  • Lay-up: TiMF laid up in layers of optimum pitch
  • Separator: Polyester tape
  • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
  • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

  • Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
  • Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

  • Temperature Range During Operation (Fixed State): -30°C – +70°C
  • Temperature Range During Installation (Mobile State): -5°C – +50°C
  • Minimum Bending Radius: 7.5 X Overall Diameter
  • Sunlight Resistance: UL 1581 section 1200
  • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5
Insulation thickness (nominal) mm 0.35 0.38 0.4 0.45 0.45
Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz) pF/m(Max.) 115
Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
Inductance mH/km(Max.) 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40
Operating voltage Urms V 300

Test Voltage

Core to Core V 1500
Core to Screen V 1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code RE-2Y(St)Y-TiMF
No. of Triples x3xCross Section Nominal Insulation Thickness Nominal Outer Sheath Thickness
  No.x3xmm2 mm mm
0.5mm2?, Multitriple
RE-2Y(St)Y-TiMF 2T0.5 2x3x0.5 0.35 1.0
RE-2Y(St)Y-TiMF 4T0.5 4x3x0.5 0.35 1.0
RE-2Y(St)Y-TiMF 5T0.5 5x3x0.5 0.35 1.1
RE-2Y(St)Y-TiMF 6T0.5 6x3x0.5 0.35 1.1
RE-2Y(St)Y-TiMF 8T0.5 8x3x0.5 0.35 1.1
RE-2Y(St)Y-TiMF 10T0.5 10x3x0.5 0.35 1.2
RE-2Y(St)Y-TiMF 12T0.5 12x3x0.5 0.35 1.2
RE-2Y(St)Y-TiMF 16T0.5 16x3x0.5 0.35 1.3
RE-2Y(St)Y-TiMF 20T0.5 20x3x0.5 0.35 1.4
RE-2Y(St)Y-TiMF 24T0.5 24x3x0.5 0.35 1.5
0.75mm2, Multitriple
RE-2Y(St)Y-TiMF 2T0.75 2x3x0.75 0.38 1.0
RE-2Y(St)Y-TiMF 4T0.75 4x3x0.75 0.38 1.1
RE-2Y(St)Y-TiMF 5T0.75 5x3x0.75 0.38 1.1
RE-2Y(St)Y-TiMF 6T0.75 6x3x0.75 0.38 1.1
RE-2Y(St)Y-TiMF 8T0.75 8x3x0.75 0.38 1.2
RE-2Y(St)Y-TiMF 10T0.75 10x3x0.75 0.38 1.3
RE-2Y(St)Y-TiMF 12T0.75 12x3x0.75 0.38 1.3
RE-2Y(St)Y-TiMF 16T0.75 16x3x0.75 0.38 1.4
RE-2Y(St)Y-TiMF 20T0.75 20x3x0.75 0.38 1.5
RE-2Y(St)Y-TiMF 24T0.75 24x3x0.75 0.38 1.6
1.0mm2, Multitriple
RE-2Y(St)Y-TiMF 2T1.0 2x3x1 0.4 1.0
RE-2Y(St)Y-TiMF 4T1.0 4x3x1 0.4 1.1
RE-2Y(St)Y-TiMF 5T1.0 5x3x1 0.4 1.1
RE-2Y(St)Y-TiMF 6T1.0 6x3x1 0.4 1.2
RE-2Y(St)Y-TiMF 8T1.0 8x3x1 0.4 1.2
RE-2Y(St)Y-TiMF 10T1.0 10x3x1 0.4 1.3
RE-2Y(St)Y-TiMF 12T1.0 12x3x1 0.4 1.3
RE-2Y(St)Y-TiMF 16T1.0 16x3x1 0.4 1.4
RE-2Y(St)Y-TiMF 20T1.0 20x3x1 0.4 1.5
RE-2Y(St)Y-TiMF 24T1.0 24x3x1 0.4 1.6
1.3mm2, Multitriple
RE-2Y(St)Y-TiMF 2T1.3 2x3x1,3 0.45 1.1
RE-2Y(St)Y-TiMF 4T1.3 4x3x1,3 0.45 1.1
RE-2Y(St)Y-TiMF 5T1.3 5x3x1,3 0.45 1.2
RE-2Y(St)Y-TiMF 6T1.3 6x3x1,3 0.45 1.3
RE-2Y(St)Y-TiMF 8T1.3 8x3x1,3 0.45 1.3
RE-2Y(St)Y-TiMF 10T1.3 10x3x1,3 0.45 1.4
RE-2Y(St)Y-TiMF 12T1.3 12x3x1,3 0.45 1.5
RE-2Y(St)Y-TiMF 16T1.3 16x3x1,3 0.45 1.6
RE-2Y(St)Y-TiMF 20T1.3 20x3x1,3 0.45 1.7
RE-2Y(St)Y-TiMF 24T1.3 24x3x1,3 0.45 1.8
1.5mm2, Multitriple
RE-2Y(St)Y-TiMF 2T1.5 2x3x1,5 0.45 1.1
RE-2Y(St)Y-TiMF 4T1.5 4x3x1,5 0.45 1.2
RE-2Y(St)Y-TiMF 5T1.5 5x3x1,5 0.45 1.2
RE-2Y(St)Y-TiMF 6T1.5 6x3x1,5 0.45 1.3
RE-2Y(St)Y-TiMF 8T1.5 8x3x1,5 0.45 1.4
RE-2Y(St)Y-TiMF 10T1.5 10x3x1,5 0.45 1.5
RE-2Y(St)Y-TiMF 12T1.5 12x3x1,5 0.45 1.5
RE-2Y(St)Y-TiMF 16T1.5 16x3x1,5 0.45 1.6
RE-2Y(St)Y-TiMF 20T1.5 20x3x1,5 0.45 1.7
RE-2Y(St)Y-TiMF 24T1.5 24x3x1,5 0.45 1.8

Note : Other conductor sizes & core configurations are available upon request.
