EN 50288-7 STANDARDS XLPE Insulated, PVC Sheathed & Overall Screened, Armoured Instrumentation Cables (Single Pair)RE-2X(St)YSWAY 90°C / 300V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

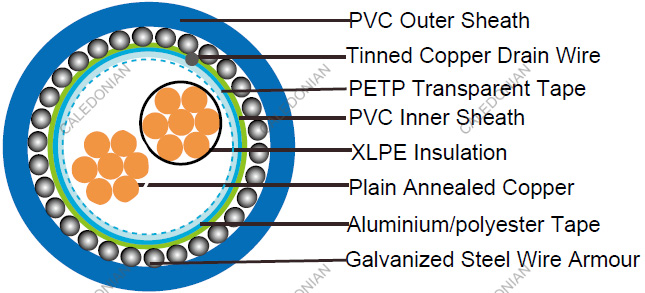

CABLE CONSTRUCTION

• Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
• Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
• Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
• Binder tape: PETP transparent tape
• Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
• Inner Sheath: Thermoplastic PVC compound as per EN 50290-2-22.
• Amouring: Galvanized steel wire armour
• Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

• Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
• Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

• Temperature Range During Operation (Fixed State): -30°C – +90°C

• Temperature Range During Installation (Mobile State): -5°C – +50°C
• Minimum Bending Radius: 6 X Overall Diameter
• Sunlight Resistance: UL 1581 section 1200
• Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
nductance		mH/km (Max.)	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2X(St)YSWAY
	No. of Pairs x2xCross Section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Overall Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness
	No.x2xmm2	mm2	mm	mm	mm	mm
RE-2X(St)YSWAY 1P0.5	1x2x0.50	0.35	0.8	5.2	0.9	1.3
RE-2X(St)YSWAY 1P0.75	1x2x0.75	0.38	0.8	5.6	0.9	1.3
RE-2X(St)YSWAY 1P1.0	1x2x1.0	0.4	0.9	6.3	0.9	1.3
RE-2X(St)YSWAY 1P1.3	1x2x1.3	0.45	0.9	6.8	0.9	1.3
RE-2X(St)YSWAY 1P1.5	1x2x1.5	0.45	0.9	7.1	0.9	1.3

Note: Other conductor sizes & core configurations are available upon request.
