2XURM70 Coaxial Cable + 2X1P2.5 Power Cable + 2X1PX22AWG Screened Twisted Pair Cable SWB LSZH Sheathed Composite Cable

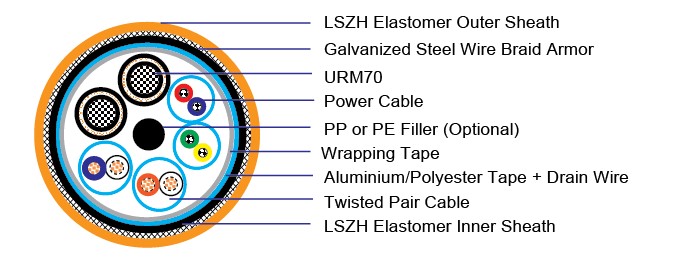

Construction:
2XURM70 75Ohm Coaxial Cable
| Conductor |
7/0.2mm Stranded bare or tinned copper conductor, φ 0.6 mm ± 0.02 mm |
| Insulation |
Polyethylene. φ 3.25 mm ± 0.15 mm |
| Screen |
Copper wire braid, coverage 91 % ± 4 % |
| Sheath |
Black LSZH. Nominal overall diameter 5.8 mm ± 0.25 mm |
2X1P2.5mm2 Power Cable 300V
| Conductor |
2.5mm2 Stranded bare or tinned copper conductor |
| Insulation |
0.6mm LSZH, Red/Blue & Green/Yellow |
| Screen |
Aluminum/polyester tape with 0.5mm2 tinned copper drain wire |
2X1P22AWG Screened Twisted Pair Cable (Belden 8723 Equivelant)
| Conductor |
7/0.254mm Stranded bare or tinned copper conductor |
| Insulation |
0.23mm PP, White/Blue & White/Orange |
| Screen |
Aluminum/polyester tape with 24AWG tinned copper drain wire |
Element Assembly
| Filler |
PE or PP material if necessary |
| Wrapping Tape |
Polyester tape or woven tape |
| Screen |
Aluminum/polyester tape with 0.5mm2 tinned copper drain wire |
| Inner Sheath |
1.0mm Black LSZH |
| Armor |
0.3mm Galvanized steel wire braid, coverage 85% |
| Outer Sheath |
1.5mm LSZH, nominal overall diameter 25.0 mm ± 2.0 mm |
| Sheath Color |
Orange. Other color available as per requested |
Electrical and Physical Properties @20°C:
Coaxial Cable
Max. Conductor Resistance @ 20°C : 92 Ω/km
Impedance: 75±5Ohm (@1MHz)
Max. Attenuation: 15.2dB/100m @100MHz
Power Cable
Conductor Resistance @ 20°C: 7.41Ohm/km
Min. Insulation Resistance: 10 MOhmxkm
Screened Twisted Pair Cable
Electrical Resistance: 49Ohm/km
Min. Insulation Resistance: 1000 MOhmxkm
