Composite Cables
4x2.5 Power Cable+2 Instrument Pair+2 Coax Cable SWA LSOH Sheathed Composite cables

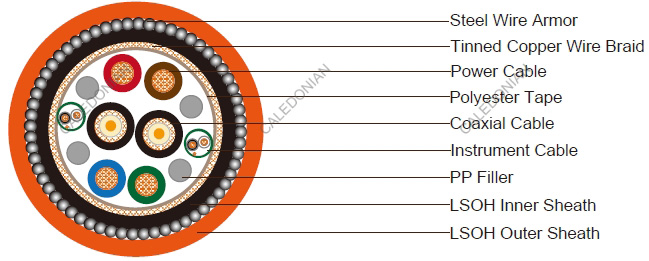

Construction:
2 Core Coaxial Cable
| Conductor | 7/0.22mm no oxygen copper conductor |
|---|---|
| Insulation | Polyethylene. Thickness 0.92mm |
| Shield | 0.12mmbare copper wire braided, coverage ca.85% |
| Sheath | LSZH, thickness: 0.8mm; Norminal outer diameter 4.5±0.3mm |
| Sheath Color | Black |
4x 2.5mm2 Power Cable
| Conductor | 7/0.68mm stranded no oxygen copper |
|---|---|
| Insulation | LSZH material. Thickness 0.8mm; outer diameter 3.7±0.2mm |
| Insulation Color | Red, blue, green, yellow |
2 Pair Instrument Cable
| Conductor | 7/0.22mm stranded tinned copper |
|---|---|
| Insulation | PE material. Thickness 0.50mm, outer diameter 1.6±0.2mm |
| Insulation Color | White/ blue; white/orange |
| Shield | Aluminum-plastic compounded tape with 7/0.22mm tinned copper draining wire |
Element Assembly
| Filler | Non-absorbent Polypropylene |
|---|---|
| Wrapping Tape | Polyestertape |
| Shield | Tinned copper wire braided, coverage ca.80% |
| Inner Sheath | Black LSOH, thickness: 1.0mm |
| Armor | 0.30mm galvanized steel(single φ wire braided; coverage ca.80% |
| Outer Sheath | LSZH , thickness: 1.7mm, Norminal outer diameter23.1±1.0mm |
| Sheath Color | Orange |
| Cable Weight | 735 kg/km |
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz) Max. Attenuation: 3dB/100m Capacity: 55pF/m nominal at 1kHz
Power Cable
Electrical Resistance: 6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm Element Assembly
Min Bending Radius: 280mm
Operating Temperature: -35°C/+90°C
Long term operation temperature of cable conductor: 90°C
Max temperature of cable conductor during short circuit: ≤250°C
