1xRG6 + 3x2.5 Power cable + 2x1x2x22AWG Data Pairs SWB LSZH Sheathed Composite Cable
Construction:
1x75Ohm RG6 Coaxial Cable ( in the center of the cable core)
| Conductor |
1.02mm Solid bare copper |
| Insulation |
Polyethylene. Diameter 4.57mm. |
| Shield 1 |
Al-Polyester Tape |
| Shield 2 |
Braid of bare copper wire. Coverage:95% |
| Sheath |
LSZH sheath. Nominal outer diameter is 6.91mm. |
| Sheath Color |
Black |
2x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor |
7/0.254mm Stranded tinned copper. |
| Insulation |
PVC material. Thickness 0.50mm. |
| Insulation Color |
White and black |
| Individual Shield |
Aluminum polyester tape |
| Drain Wire |
24 AWG stranded tinned copper |
| Sheath |
LSZH sheath. Thickness 0.5mm. |
| Sheath Color |
Black with white number code |
3x2.5mm² Power Cable ( around coaxial cable)
| Conductor |
2.5mm² Stranded tinned copper wire. |
| Insulation |
XLPE. Outer diameter 3.6mm |
| Insulation Color |
Blue, Brown and Green/Yellow |

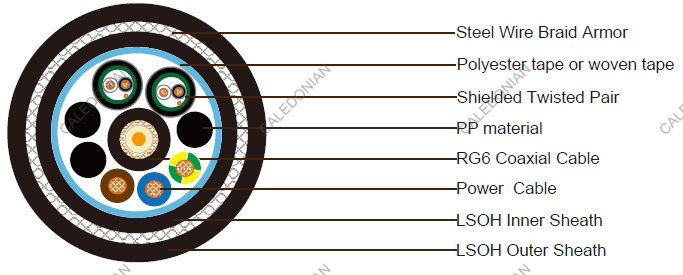

Element Assembly
| Filler |
PE or PP material |
| Wrapping Tape |
Polyester tape or woven tape |
| Inner Sheath |
Black LSZH, thickness 0.75mm |
| Armor |
Steel wire braid, dia. 0.2mm, coverage 95% |
| Outer Sheath |
LSZH, thickness 1.5mm, nominal outer diameter 21.0mm. Approx. |
| Sheath Color |
Black |
| Cable Weight |
485kg/km |
Electrical and Physical Properties@20°C:
Coaxial Cable
Conductor Resistance @ 20°C : 22 ohm/km
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 5.2dB/100m @50MHz
Power Cable
Conductor Resistance @ 20°C: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 49Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
