1xRG59+3x1.5 Power Cable+6x1x2x24AWG Shielded Control Cable Without Sheath SWB LSZH Sheathed Composite Cable

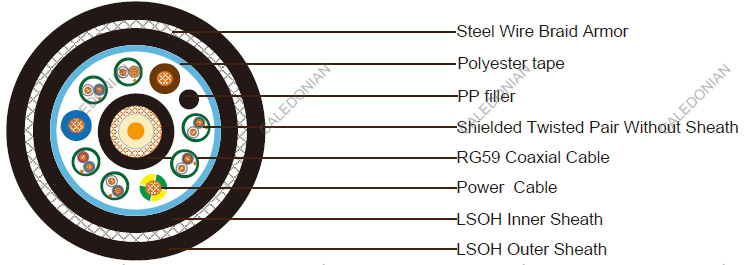

Construction:
1x75Ohm RG59 Coaxial Cable
| Conductor |
0.58mm Solid copper conductor |
| Insulation |
Polyethylene. Thickness 1.56mm |
| Shield |
Braid of bare copper wire. Coverage ≥ 95% |
| Sheath |
LSZH sheath. Nominal outer diameter 6.15mm |
| Sheath Color |
Black |
6x1x2x24 AWG Shielded Control Cable Without Sheath
| Conductor |
7/0.2mm Stranded tinned copper |
| Insulation |
PVC material. Thickness 0.4mm |
| Insulation Color |
White and blue, White and orange, White and green, White and brown, White and grey, Red and blue according to IEC60708-1 |
| Shield |
Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
3x1.5mm² Power Cable
| Conductor |
1.5mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360 |
| Insulation |
XLPE compound to BS6234. Nominal outer diameter 3.0mm |
| Insultion Color |
Blue, Brown and Green/Yellow |
Element Assembly
| Filler |
PP, PVC or PE |
| Wrapping Tape |
Polyester tape |
| Inner Sheath |
Black LSZH, thickness 0.76mm |
| Armor |
0.2mm steel wire interwoven braid,coverage 95% |
| Outer Sheath |
LSZH, thickness 1.4mm, nominal outer diameter is 22.6mm |
| Sheath Color |
Black |
Physical Characteristic:
Min Bending Radius: 360mm
Operating Temperature: -35°C/+90°C
Fire Performance:
Flame Retardant: IEC60332 part 1 & 2
Halogen Free: IEC 60754
Low Smoke Emission: IEC 61034
