1xRG59+3x1.5 Power Cable+6x1x2x24AWG Shielded Control Cable SWB LSZH Sheathed Composite Cable

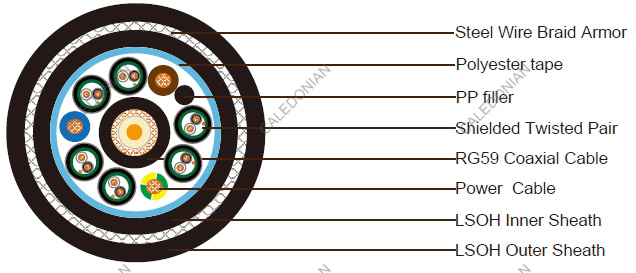

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

6x1x2x24 AWG Shielded Control Cable

Conductor 7/0.2mm Stranded tinned copper
Insulation PVC material. Thickness 0.4mm
Insulation Color White and black
Shield Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm. Thickness: 0.76mm
Sheath Color Black and Grey

3x1.5mm² Power Cable

Conductor 1.5mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360
Insulation XLPE compound to BS6234. Nominal outer diameter 3.0mm
Insultion Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP, PVC or PE
Wrapping Tape Polyester tape
Inner Sheath Black LSZH, thickness 0.76mm
Armor 0.2mm steel wire interwoven braid,coverage 95%
Outer Sheath LSZH, thickness 1.4mm, nominal outer diameter is 24.5mm
Sheath Color Black

Physical Characteristic:

Min Bending Radius: 360mm
Operating Temperature: -35°C/+90°C

Fire Performance:

Flame Retardant: IEC60332 part 1 & 2
Halogen Free: IEC 60754
Low Smoke Emission: IEC 61034
