1x RG59+3x3 Power Cable+2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable

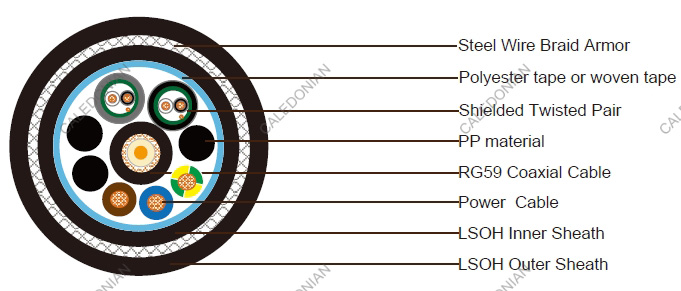

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable( in the center of the cable core)

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)

Conductor 7/0.2mm Stranded tinned copper
Insulation PVC material. Thickness 0.4mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 24 AWG stranded tinned copper drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
Sheath Color Black and Grey

3x1.5mm² Power Cable ( around coaxial cable)

Conductor 1.5mm² Stranded tinned copper wire
Insulation XLPE. Nominal outer diameter 3.0mm
Insultion Color Blue, Brown and Green/Yellow

Element Assembly

Filler PE or PP material
Wrapping Tape Polyester tape or woven tape
Inner Sheath Black LSZH, thickness 0.8mm
Armor Steel wire braid, coverage 85%
Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter 21.5±2.0mm
Sheath Color Black

Electrical and Physical Properties @20°C:

Coaxial Cable

Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz

Power Cable

Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm

Element Assembly:

Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C

Fire Performance:

Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Flame Propagation: IEC60332
