Composite Cables
1x RG59+7x1x2x22AWG Pairs Data Cable+3xPower Cable SWA LSZH Sheathed Composite Cable

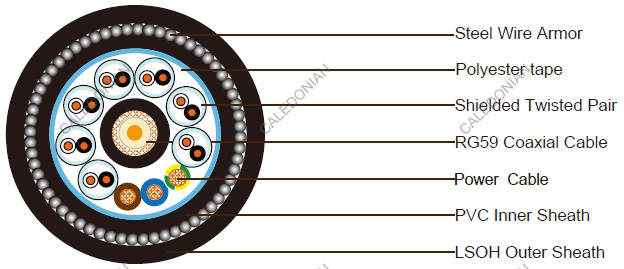

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene. Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath PVC sheath. Nominal outer diameter 6.15mm
Sheath Color Black

7x1x2x22 AWG Shielded Twisted Pair Data Cables

Conductor 22AWG Stranded tinned copper
Insulation PE material. Thickness 0.6mm
Insulation Color Black and white with numbering
Individual Shield Aluminium polyester tape with stranded tinned copper drain wire

3x16AWG Power Cable

Conductor 16AWG Stranded tinned copper wire
Insulation XLPE. Thickness 0.7mm
Insultion Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP material if necessary
Wrapping Tape Polyester tape
Inner Sheath 1.2mm PVC compound
Armor Galvanized steel wire
Outer Sheath An outer protection of extruded UV resisting, anti-rodent and anti-termite LSZH compound is applied over armor. Thickness: 2.0mm. Nominal outer diameter is 28.0mm.
Sheath Color Black
Cable Weight 510kg/km

Physical Characteristic:

Min Bending Radius: 560mm
Operating Temperature: -30°C/+70°C
