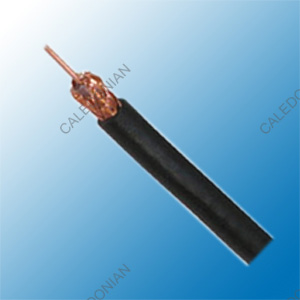

KX 8 Coaxial Cables

Construction

Inner conductor  Bare copper  7 x 0.4 mm
Dielectric  Solid PE  Φ7.25 mm
Outer conductor shield  Bare copper /Copper clad Aluminum(CCA)  192x0.10 mm
Shield coverage  80%
Sheath  PVC/FR-PVC  Φ10.20 mm

Electrical & Mechanical Characteristics

Impedance  75±5 Ohm
Nominal capacitance  67 pF/m
Velocity of propagation  66%
Insulation resistance  >5000 Mohm.Km
Inner conductor resistance  22.2 Ohm/Km
Outer conductor resistance  15.5 / 16.5 Ohm/Km
Rated temperature  70°C
Cable weight (approx.)  - kg/km

Attenuation

For bare copper braid For CCA braid
Frequency  Attenuation  Attenuation  Frequency  Attenuation  Attenuation
(MHz)  (dB/100 m) (dB/100 ft)   (MHz)  (dB/100 m)  (dB/100 ft)
10 2.9 0.88 10 2.9 0.88
50 4.5 1.37 50 4.5 1.37
100 6.6 2.01 100 6.6 2.01
200 10.9 3.32 200 11.9 3.63
400 13.8 4.21 400 14.8 4.51
850 23.6 7.2 850 24.6 7.5
950 26.8 8.17 950 27.8 8.48
1000 27.5 8.38 1000 28.5 8.69

Return Loss

470-3000 MHz >=20dB
5-470 MHz >=25dB
