Overall Screened Thermocouple Cable

Applications

Overall Screened Thermocouple Cable are used with thermocouples for temperature measurements where hydrocarbon may be present.

Standards

IEC 60584-3; NF C 42-324

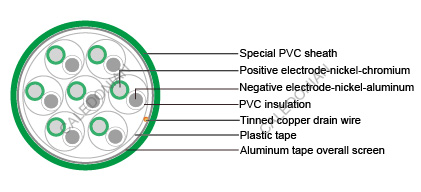

Construction

Conductor: Metal according to thermocouple type
Insulation: PVC
Overall screen: Aluminum/polyester tape with tinned copper drain wire
Sheath: Special PVC. Color depends on thermocouple type

Properties

Flame retardance: NFC 32070 C2, IEC 60332-1-2
Operating voltage: 250V
Operating temperature: -20~60°C
Max. conductor temperature in service: 70°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
Conductor Size No, of Pairs Min. O.D. (mm) Max. O.D. (mm) Approx. Weight (kg/km)
 mm sq Solid or Stranding
1 14 x 0.30 mm 1 6.3 7.4 70
1.34 1 x 1.30 mm 1 6.3 7.4 75
0.5 1 x 0.8 mm 3 8.0 9.3 95
0.5 1 x 0.8 mm 7 10.5 12.1 165
0.5 1 x 0.8 mm 12 13.3 15.3 255
0.5 1 x 0.8 mm 19 16.5 19.0 380
0.5 1 x 0.8 mm 27 19.2 22.0 510
