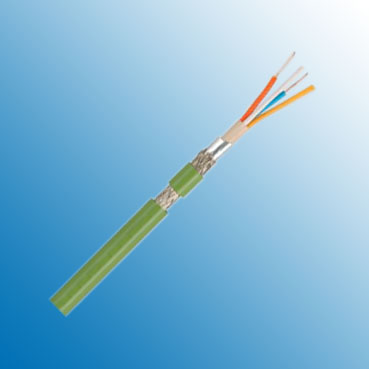

ProfiNet Type A Radiation Resistant & Armored
Application:
Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.
Construction:
| Type/Area of Application |
Ray loaded areas |
Fixed Installation, Outdoor |
| Cable Construction |
2x2x0.64 mm |
2x2x0.64 mm |
| Inner Conductor Diameter |
Copper, bare (AWG 22/1) |
Copper, bare (AWG 22/1) |
| Conductor Insulation |
XLPE ray cross-linking |
PE |
| Conductor Colors |
white, yellow, blue, orange |
white, yellow, blue, orange |
| Stranding Element |
Star quad |
Star quad |
| Shielding 1 |
Polyester foil over stranded bundle |
Polyester foil over stranded bundle |
| Shielding 2 |
Polyester foil, aluminum-lined |
Polyester foil, aluminum-lined |
| Total Shielding |
Cu braid, tinned |
Cu braid, tinned |
| Armoring |
- |
Steel Rib |
| Inner Jacket Material |
TPR cross-linking |
PVC |
| Outer Jacket Material |
PUR |
PE |
| Outer Diameter |
6.5 mm ± 0.2 mm |
9.3 mm ± 0.5 mm |
| Outer Jacket Color |
Green |
Black |
Electrical Data:
| Characteristic Impedance@1-100 MHz |
100 Ω ± 15 Ω |
| Conductor Resistance |
62.0 Ohm/km max. |
| Insulation Resistance |
0.50 GOhm x km min. |
| Mutual Capacitance |
50.0 nF/km nom. |
| Working Voltage |
300V |
| Test Voltage |
1.5 KV |
| Attenuation |
10 MHz |
5.2 dB/10m |
| 16 MHz |
6.9 dB/10m |
| 62.5 MHz |
62.5 dB/10m |
| 100 MHz |
19.5 dB/10m |
Technical Data:
| Weight |
approximately 63.0 kg/km |
approximately 124.0 kg/km |
| Min. Bending Radius (Laying) |
46.0 mm |
93.0 mm |
| Operating Temp. Range, min. |
-40 °C |
-40 °C |
| Operating Temp.Range, max. |
+80 °C |
+70 °C |
