BS 6346 PVC Insulated Cables,1900/3300V
Three-core 1900/3300 V cables with stranded copper conductors

Application

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour, so they are well adapted to underground use in industrial applications, in moist areas.

Construction

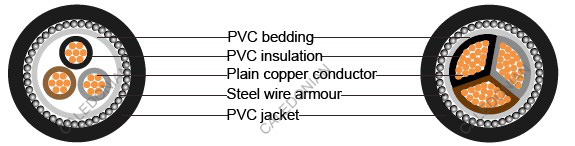

Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. Insulation PVC(Polyvinyl Chloride) type TI1

Colour Code 1 Core : Brown
  2 Cores: Brown, Blue
  3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers
Filler(optional) Binder Tape(optional) Inner Sheath/ Bedding Armour Outer Sheath PVC or Polypropylene yarn Polyester (Mylar) tape PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum WireArmour) Multi Core: SWA (Steel Wire or Tape Armour) PVC(Polyvinyl Chloride), type TM1

Technical Information

Voltage rating 1900/3300V
Temperature rating -20°C to +60°C
Bending radius Single core: 10 x overall diameter     Multicores: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1

Three-core 1900/3300 V cables with stranded copper conductors

Nominal cross-sectional area Number /wire Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx. overall diameter Approx. cable weight
mm² No./mm mm mm mm mm mm kg/mm
3x16 7/1.70 2.2 1.0 1.6 1.8 30.3 1700
3x25 7/2.14 2.2 1.0 1.6 1.8 33.1 2085
3x35 19/1.53 2.2 1.0 1.6 1.9 35.8 2405
3x35* 19/1.53 2.2 1.0 1.6 1.9 32.1 2405
3x50* 19/1.78 2.2 1.2 2.0 2.0 35.6 3160
3x70* 19/2.14 2.2 1.2 2.0 2.1 38.9 3925
3x95* 19/2.52 2.2 1.2 2.0 2.2 42.3 4860
3x120* 37/2.03 2.2 1.4 2.5 2.3 46.6 6205
3x150* 37/2.25 2.2 1.4 2.5 2.4 49.4 7175
3x185* 37/2.52 2.2 1.4 2.5 2.5 52.8 8320
3x240* 61/2.25 2.2 1.6 2.5 2.6 57.8 10395
3x300* 61/2.52 2.4 1.6 2.5 2.8 63.2 12575
3x400* 61/2.85 2.6 1.6 2.5 3.0 69.6 15325
