Belden Equivalent Cables 9875
Multipair Individually Screened Cables

Application

These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG stranded tinned copper drain wire. These cables are used as computer cables.

Construction

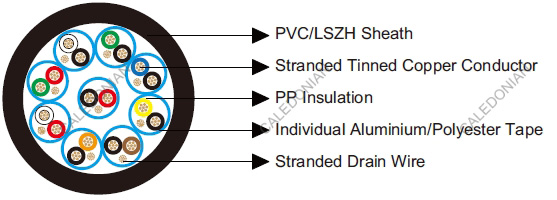

Belden Equivalent Cable 9875

Conductor: Tinned copper wire.

Insulation: PP.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green.

Electrical & Mechanical Characteristics

AWG   20
Conductor Construction   7x0.32
UL Style   2919
Maximum Conductor Resistance Ω/km 34.1
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 98
Nominal Capacitance Conductor to Screen pF/m 180
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~80

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119875V 9 0.33 1.22 14.1
BE119875H 9 0.33 1.22 14.1
