Belden Equivalent Cables 9855
Multipair Overall Foil & Braid Screened Cables

Application

These cables have pairs laid up in a foil/braid screen. These cables are suitable for EIA RS 232 and CAD/CAM applications, used as computer cables.

Construction

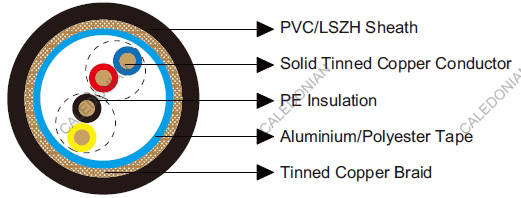

Belden Equivalent Cable 9855

Conductor: Tinned copper wire.

Insulation: PE.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 58% coverage.

Sheath: PVC/LSZH.

Insulation Colour: Red & Blue, Black & Yellow.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   Solid
UL Style   2582
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 150
Nominal Capacitance Conductor to Conductor pF/m 51
Nominal Capacitance Conductor to Screen pF/m 90
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~60

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119855V 2 0.4 0.813 6.9
BE119855H 2 0.4 0.813 6.9
