Belden Equivalent Cables 9844
Multipair Overall Foil & Braid Screened Cables

Application

These cables have pairs laid up in a foil/braid screen, suitable for RS 485 applications.



Construction

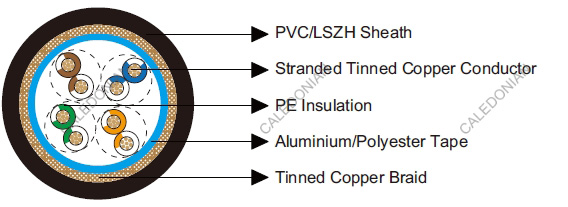

Belden Equivalent Cable 9844

Conductor: Tinned copper wire.

Insulation: PE.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 90% coverage.

Sheath: PVC/LSZH.

Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.2
UL Style   2919
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 42
Nominal Capacitance Conductor to Screen pF/m 76
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -30~80

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119844V 4 0.6 0.81 9.9
BE119844H 4 0.6 0.81 9.9
