Belden Equivalent Cables 9774
Multipair Individually Screened Cables

Application

These cables have individually screened pairs laid up. Each individually screened pair has a 20AWG stranded tinned copper drain wire. These cables are used as computer cables.

Construction

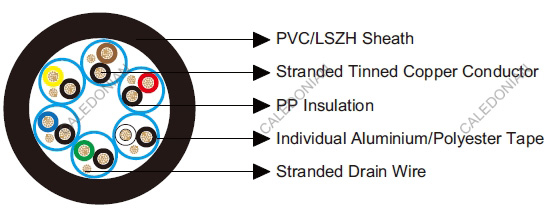

Belden Equivalent Cables 9774

Conductor: Tinned copper wire.

Insulation: PP.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown.

Electrical & Mechanical Characteristics

AWG   18
Conductor Construction   19x0.254
UL Style   2919
Maximum Conductor Resistance Ω/km 21
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 98
Nominal Capacitance Conductor to Screen pF/m 180
Bending Radius   10xOverall Diameter
Operating Temperature -20~80

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119774V 6 0.4 1.22 14.1
BE119774H 6 0.4 1.22 14.1
