Belden Equivalent Cables 9728
Multipair Individually Screened Cables

Application

These cables have individually screened pairs laid up. Each individually screened pair has a 24AWG stranded tinned copper drain wire. These cables are suitable for RS-422 applications, used as computer cables.

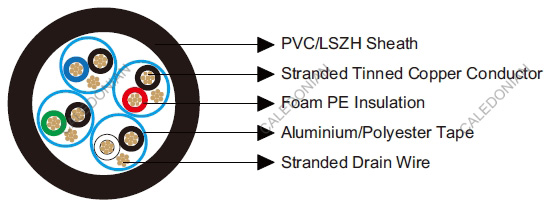

Construction

Belden Equivalent Cables 9728

Conductor: Tinned copper wire.

Insulation: FoamPE.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.2
UL Style   2493
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 41
Nominal Capacitance Conductor to Screen pF/m 76
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~60

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119728V 4 0.47 1.22 9.2
BE119728H 4 0.47 1.22 9.2
