Multipair Overall Screened Cables-Belden Equivalent 9682

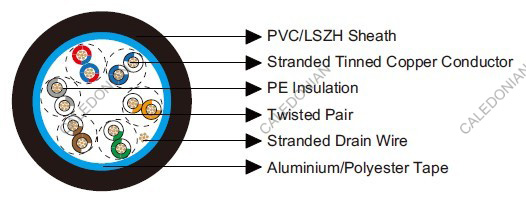

Belden Equivalent 9682

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are used as low capacitance computer cables for EIA RS-232/422 applications.

Construction

Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green& Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.2
UL Style   2919
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 51
Nominal Capacitance Conductor to Screen pF/m 90
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119682V 6 0.25 0.89 8.2
BE119682H 6 0.25 0.89 8.2
