Belden Equivalent 9533 Multicore Overall Screened Cables

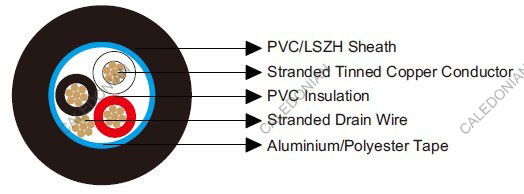

Belden Equivalent 9533

Application

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

Construction

Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Stranded tinned copper, 7x0.20.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, White, Red.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.20
UL Style   2464
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 108
Nominal Capacitance Conductor to Screen pF/m 213
Bending Radius   10xOverall Diameter
Operating Temperature -30~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119533V 3 0.25 0.81 4.1
BE119533H 3 0.25 0.81 4.1
