Belden Equivalent 9260 Multicore Overall Screened Cables

Belden Equivalent 9260

Application

These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as control cables.

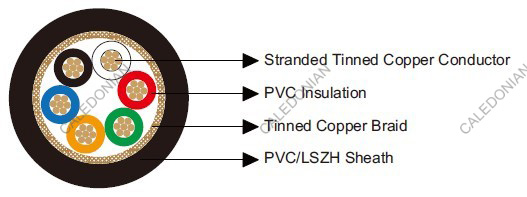

Construction

Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Tinned copper braid, 85% coverage.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, White, Red, Green, Orange, Blue.

Electrical & Mechanical Characteristics

AWG   20
Conductor Construction   7x0.32
UL Style   2464
Maximum Conductor Resistance Ω/km 34.1
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 85
Nominal Capacitance Conductor to Screen pF/m 164
Bending Radius   10xOverall Diameter
Operating Temperature -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119260V 6 0.41 0.81 7.8
BE119260H 6 0.41 0.81 7.8
