Belden Equivalent 9154 Multicore Overall Screened Cables

Belden Equivalent 9154

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

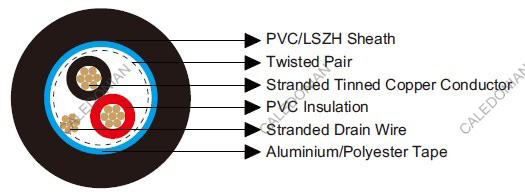

Construction

Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black/Red.

Electrical & Mechanical Characteristics

AWG   20
Conductor Construction   7x0.32
UL Style   2464
Maximum Conductor Resistance Ω/km 34.1
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 197
Nominal Capacitance Conductor to Screen pF/m 328
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119154V 1 0.36 0.79 5.0
BE119154H 1 0.36 0.79 5.0
