Belden Equivalent 8772 Multicore Overall Screened Cables

Belden Equivalent 8772

Application

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

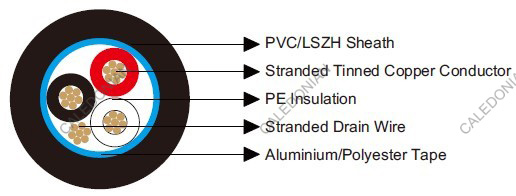

Construction

Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Red, Clear.

Electrical & Mechanical Characteristics

AWG   20
Conductor Construction   7x0.32
UL Style   2093
Maximum Conductor Resistance Ω/km 34.1
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 89
Nominal Capacitance Conductor to Screen pF/m 167
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~60

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118772V 3 0.41 0.84 5.5
BE118772H 3 0.41 0.84 5.5
