Belden Equivalent 8771 Multicore Overall Screened Cables

Belden Equivalent 8771

Application

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

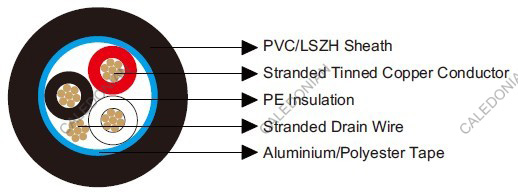

Construction

Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Stranded tinned copper.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Red, Clear.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   7x0.254
UL Style   2093
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 75
Nominal Capacitance Conductor to Screen pF/m 135
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~60

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118771V 3 0.41 0.84 5.1
BE118771H 3 0.41 0.84 5.1
