Belden Equivalent 8762 Multicore Overall Screened Cables

Belden Equivalent 8762

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

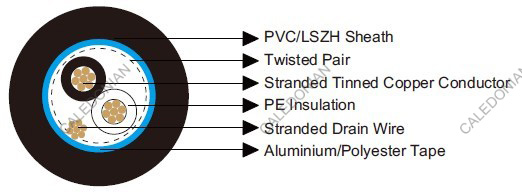

Construction

Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Clear.

Electrical & Mechanical Characteristics

AWG   20
Conductor Construction   7x0.32
UL Style   2092
Maximum Conductor Resistance Ω/km 34.1
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 89
Nominal Capacitance Conductor to Screen pF/m 161
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~60

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118762V 1 0.41 0.71 5.2
BE118762H 1 0.41 0.71 5.2
