Belden Equivalent 8735 Multicore Overall Screened Cables

Belden Equivalent 8735

Application

These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as communication and instrumentation cables.

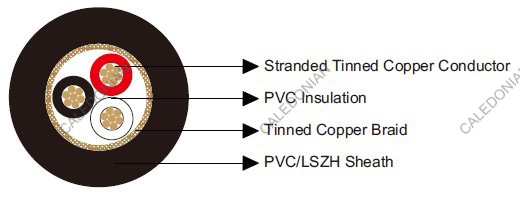

Construction

Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Tinned copper braid, 70% coverage.
Drain Wire: Stranded Tinned Copper.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Red, White.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   7x0.254
UL Style   2095
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 112
Nominal Capacitance Conductor to Screen pF/m 197
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118735V 3 0.38 0.64 5.1
BE118735H 3 0.38 0.64 5.1
