Belden Equivalent 8729 Multicore Overall Screened Cables

Belden Equivalent 8729

Application

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a drain wire. These cables are suitable for used as audio, control and instrumentation cables.

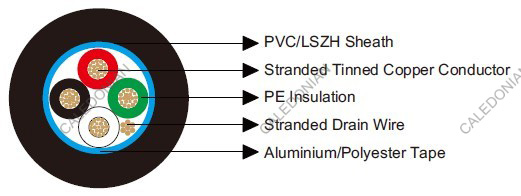

Construction

Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Tinned copper covered steel.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Red, Green, Clear.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   19x0.16
UL Style   2094
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 72
Nominal Capacitance Conductor to Screen pF/m 138
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -40~75

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118729V 4 0.41 1.30 6.5
BE118729H 4 0.41 1.30 6.5
