Belden Equivalent Cables 8720
Multipair Overall Screened Cables

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

Construction

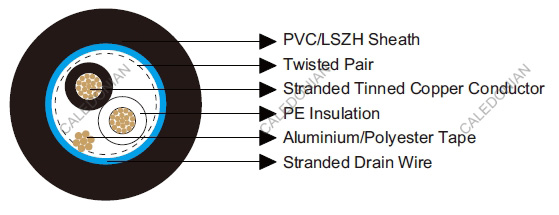

Belden Equivalent Cables 8720

Conductor: Tinned copper wire.

Insulation: PE.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black, Clear.

Electrical & Mechanical Characteristics

AWG   14
Conductor Construction   19x0.36
UL Style   20253
Maximum Conductor Resistance Ω/km 10
Voltage Rating V 600
Nominal Capacitance Conductor to Conductor pF/m 79
Nominal Capacitance Conductor to Screen pF/m 154
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~80

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118720V 1 0.81 0.89 9.0
BE118720H 1 0.81 0.89 9.0
