Belden Equivalent Cables 8451
Multipair Overall Screened Cables

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

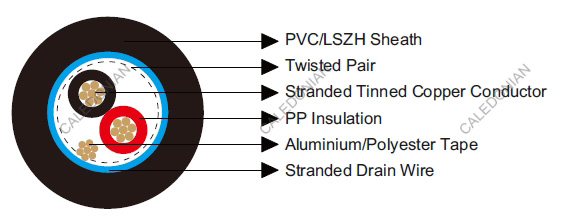

Construction

Belden Equivalent Cables 8451

Conductor: Tinned copper wire.

Insulation: PP.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black, Red.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   7x0.254
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 112
Nominal Capacitance Conductor to Screen pF/m 220
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~75

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118451V 1 0.2 0.5 3.5
BE118451H 1 0.2 0.5 3.5
