Belden Equivalent 8441 Multicore Overall Screened Cables

Belden Equivalent 8441

Application

These multipair overall screened cables have pairs laid up in a braid screen. These cables are suitable for used as audio, control and instrumentation cables.

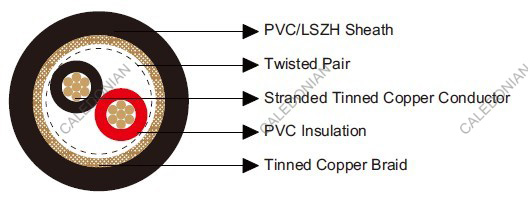

Construction

Conductor: Tinned copper wire.
Insulation: PVC.
Separator: Polyester Tape.
Overall Screen: Tinned copper braid, 86% coverage.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black/Red.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   7x0.254
UL Style   2095
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 161
Nominal Capacitance Conductor to Screen pF/m 282
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118441V 1 0.38 0.64 4.9
BE118441H 1 0.38 0.64 4.9
